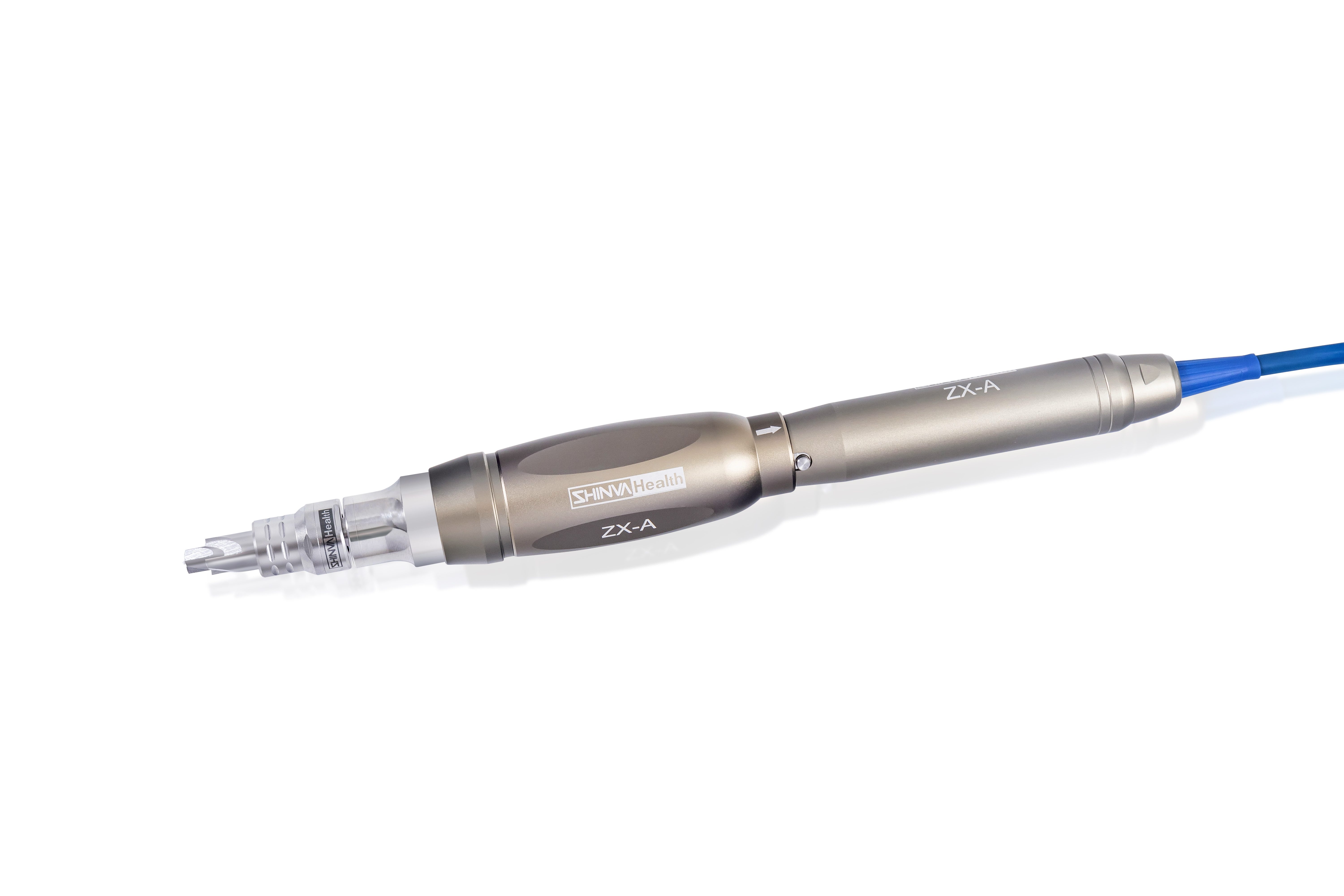

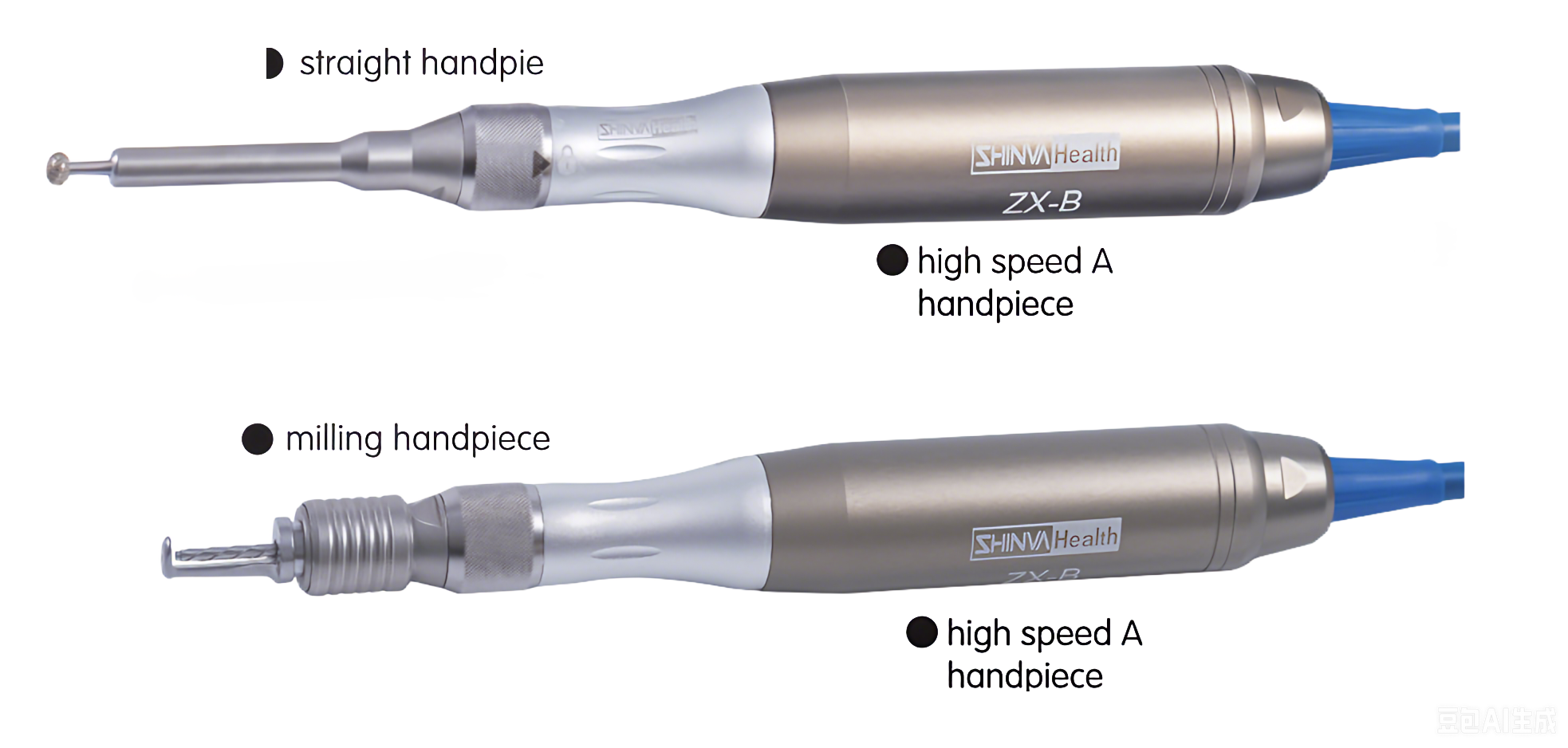

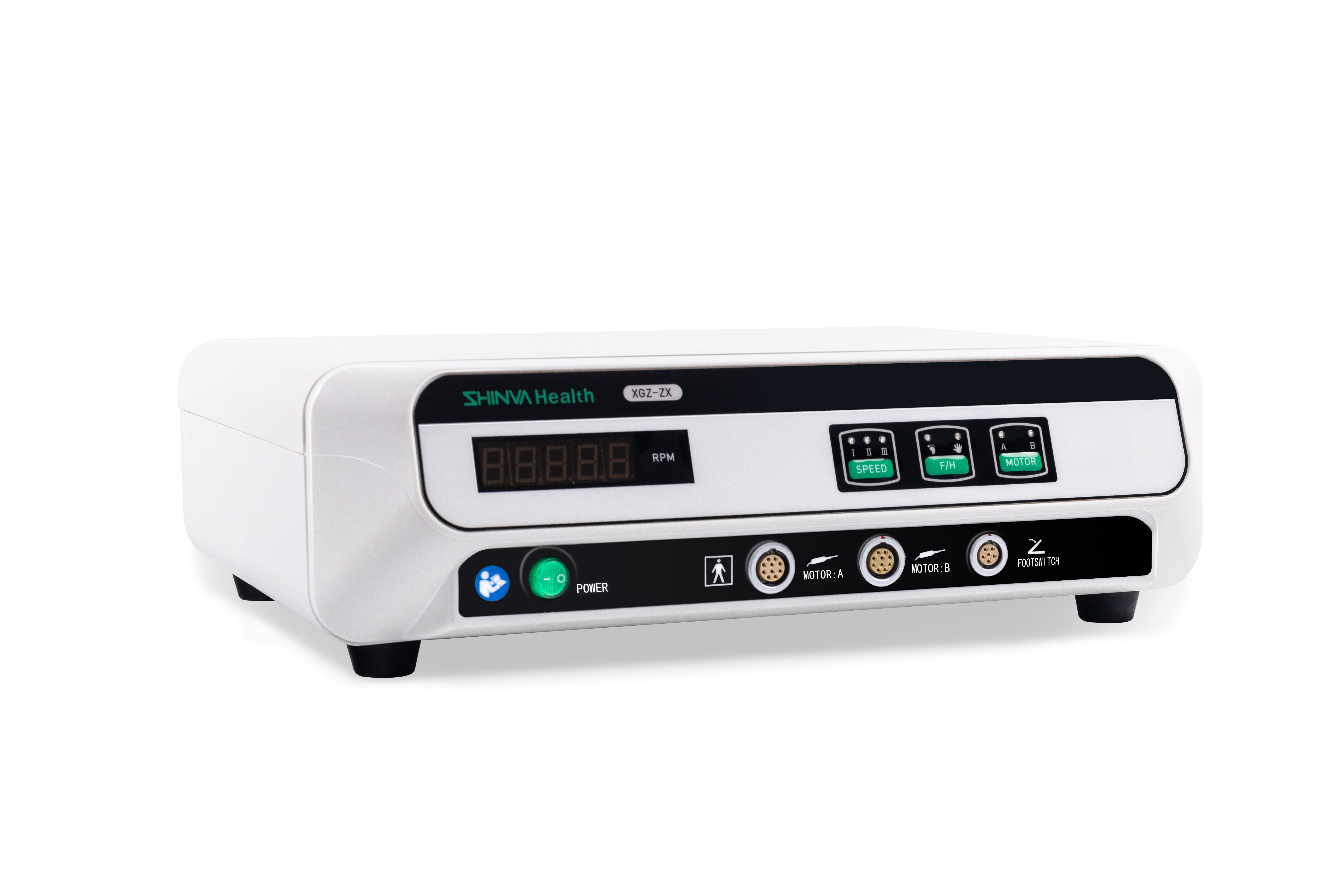

XGZ-ZX neurosurgery surgical power system (Article No. HD01002) is a dedicated AC-driven surgical power tool for neurosurgery. It consists of ZX-A low speed handpiece and ZX-B high speed A handpiece, compatible with self-stopping drills, straight handpieces and milling handpieces.
The system is designed for routine craniotomy, emergency craniotomy, cerebral hemorrhage, hematoma removal, tumor resection and transnasal skull base surgery, for precise drilling and milling of intracranial and skull base bone and soft tissue.
High-speed & Efficient Craniotomy
• Max speed of high speed A handpiece up to 70000 rpm with 1:1 rate output
• Import fully sealed motor, power over 150W, stable high torque & high speed performance
• Supports up to 1000 sterilization cycles for long-term repeated clinical use
Intelligent Constant Power Compensation
• Constant output control with power compensation function
• Load speed drop ≤5%, maintains stable cutting performance under variable load
• Three gears with stepless speed change for flexible speed adjustment
Reliable Intraoperative Safety
• Built-in self-diagnosis on power-on; automatic stop and alarm upon fault detection
• Self-stopping drill available in Φ11mm, Φ7mm, Φ6mm options to avoid over-penetration
Comfortable Continuous Operation
• Air-free cooling and thermal insulation design
• Surface temperature rise ≤15℃ after 10 mins continuous operation, protects surgeon’s hand
Specifications
| Parameter | Specification |
|---|---|
| Product Model | XGZ-ZX |
| Article No. | HD01002 |
| Application | Routine craniotomy, emergency craniotomy, cerebral hemorrhage, hematoma and other neurosurgery operations |
| Power Source | AC 220V, 50Hz |
| Max Rotation Speed – Low speed handpiece | 1400 rpm |
| Max Rotation Speed – High speed A handpiece | 70000 rpm |
| Output Torque – Low speed handpiece | ≥750 mN·m |
| Output Torque – High speed A handpiece | ≥11.2 mN·m |
| Speed Adjustment | Three gears, stepless speed change |
| Output Power | 300VA |
| Self-stopping Drill Sizes | Φ11mm, Φ7mm, Φ6mm |
| Sterilization | Supports 1000 sterilization cycles |
| Temperature Control | Surface temperature rise ≤15℃ after 10min continuous running |
| Speed Stability | Load speed drop ≤5% |
| Safety Function | Power-on self-diagnosis, auto stop & alarm for faults |
