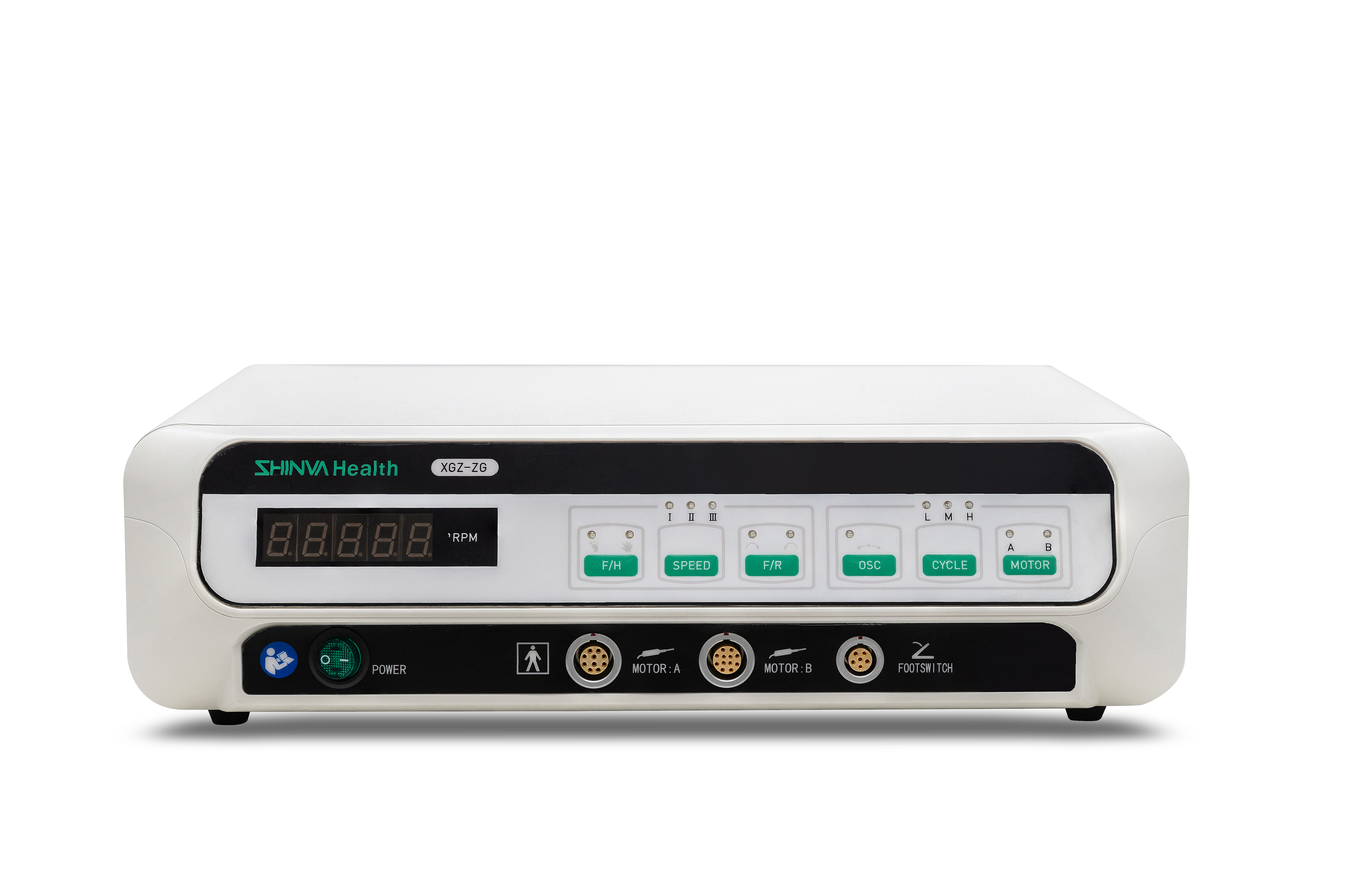

XGZ-ZG ENT Surgical Power System (Article No. HD01001) is a dedicated power device for otolaryngology operations. It is configured with HD02003 medium speed handpiece, HD02006 cutting handpiece, as well as straight and curved handpieces.
The system performs soft tissue resection and bone grinding, widely used for nasal polyp removal, adenoid ablation, sinus surgery, skull base bone surgery and otological milling & drilling procedures.
Efficient Tissue Shaving & Cutting
• Large cutting window with abundant blade types & angles for diverse surgical demands
• Straight drainage technology: negative pressure suction tube connects straightly to cutting window, minimizes negative pressure loss and guarantees consistent cutting performance
Rugged & Reliable Construction
• Handpiece made of stainless steel with high mechanical strength
• Foot pedal reaches IPX8 waterproof grade, safe for intraoperative cleaning
Intelligent Safety Protection
• Built-in self-diagnosis function. The unit will automatically stop and trigger alarm once faults are detected.
Flexible Multi-handpiece Configuration

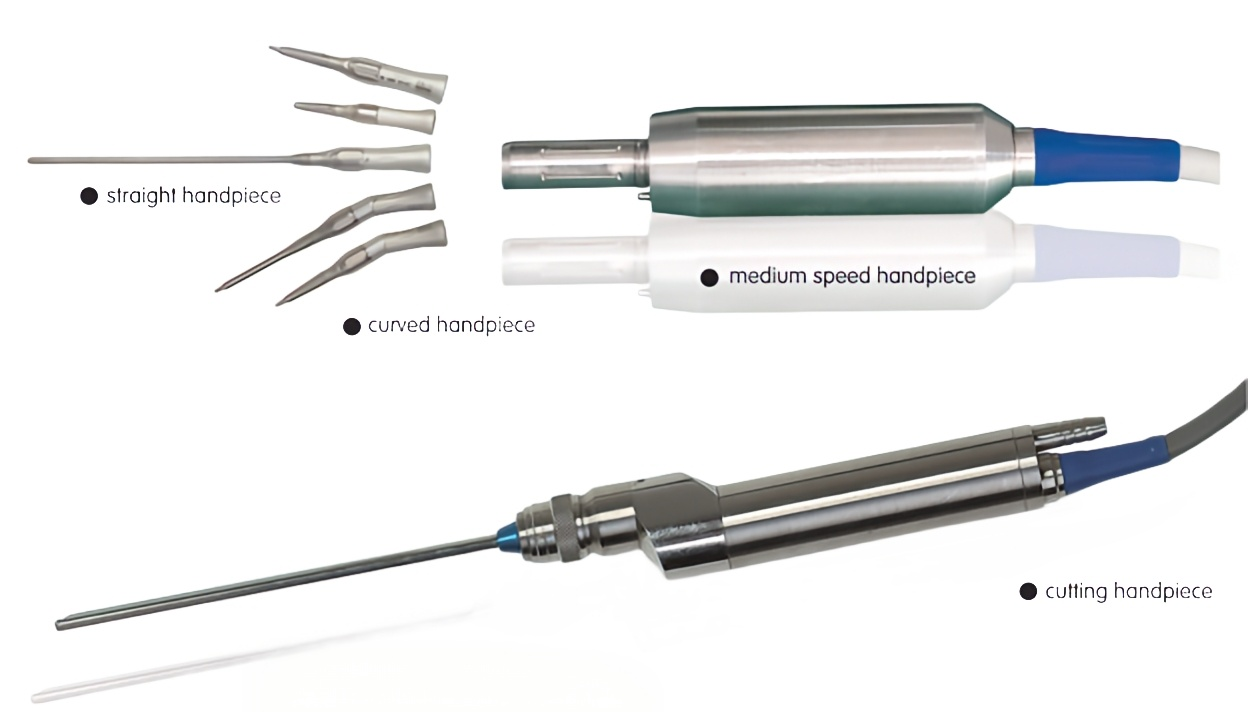

• Multiple handpiece options: cutting handpiece, medium speed handpiece, ultra-long straight / curved handpieces
• Three gears with stepless speed adjustment to adapt to different soft tissue and bone operations
Specifications
| Parameter | Specification |
|---|---|
| Product Model | XGZ-ZG |
| Article No. | HD01001 |
| Application | ENT surgery |
| Power Source | AC 220V,50Hz |
| Max Rotation Speed – Cutting handpiece | 9000 rpm |
| Max Rotation Speed – Medium speed handpiece | 50000 rpm |
| Max Rotation Speed – Ultra long straight/curved handpiece | 40000 rpm |
| Output Torque – Cutting handpiece | ≥38 mN.m |
| Output Torque – Medium speed handpiece | ≥10.4 mN.m |
| Speed Adjustment | Three gears, stepless speed change |
| Output Power | 180VA |
| Handpiece Types | Medium speed handpiece, cutting handpiece, straight handpiece, curved handpiece |
| Foot Switch Rating | IPX8 waterproof |
| Material | Stainless steel handpiece |
| Safety Function | Power-on self-diagnosis, auto stop & alarm for faults |
