Strong Power for Trauma Drilling
• Speed range: 0‑1100 rpm with powerful output
• Rated torque ≥3.5 Nm for demanding bone drilling
• Optimized for guide‑wire assisted cannulated surgical workflows
Low‑noise & Stable Operation
• No‑load noise ≤65dB(A) for quieter surgical environment • Smooth running performance reduces intraoperative vibration
• Improve surgical comfort and procedural stability
Wide Chuck Clamping Capacity
• Chuck clamping range: 0.8‑7.9 mm
•Fits multiple sizes of cannulated drill bits
• Meets varied drilling requirements of trauma fracture cases
Rechargeable Battery & Great System Compatibility
• Ni‑MH battery: 1800mAh, 14.4V
• Wide charger input AC110‑220V, 50‑60Hz
• Interchangeable battery and charger with other power hosts of the series
Specifications
| Parameter | Description |
|---|---|
| Product Type | Battery Powered Cannulated Drill |

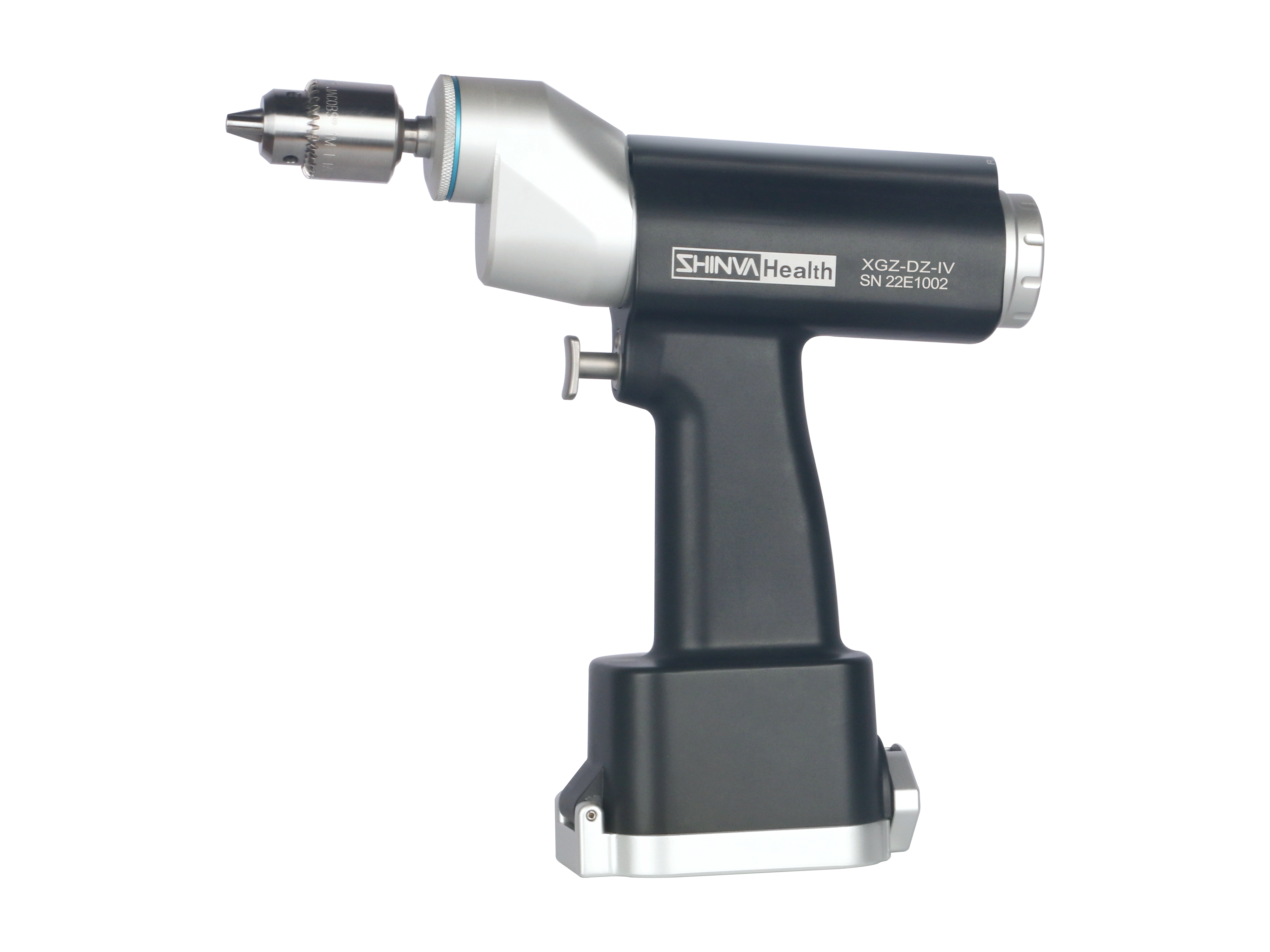

| Model | XGZ‑DZ‑IV |
| Application | Orthopaedic trauma operation |
| Power Supply | Ni‑MH battery, 1800mAh, 14.4V |
| Sterilization Method | 134°C high‑temperature steam sterilization |
| Compatible Accessories | Cannulated drill bits, battery, charger and series orthopaedic attachments |
| Speed Range | 0‑1100 rpm |
| Rated Torque | ≥3.5Nm |
| No‑load Noise | ≤65dB(A) |
| Clamping Range | 0.8‑7.9mm |
| Charger Input Voltage | AC110‑220V, 50‑60Hz |
