Integrated Structure with Superior Protection
• Robust integrated design
• Excellent protection performance
•Stable operation in complex surgical environment
High Power & Adjustable Speed
• Speed range: 0–1000 rpm, output power 150W
• Rated torque ≥3.5Nm for tough cranial bone cutting
• Strong and steady power output
Low Noise & High Rotation Precision
• No-load noise ≤65dB(A) for quieter operation
• Radial runout ≤1mm, ensures precise drilling
• Reduces surgical vibration and improves accuracy
Rechargeable Battery & Wide Compatibility
• Ni-MH battery: 1800mAh, 14.4V
• Wide charger input AC110–220V, 50–60Hz
• Interchangeable battery and charger with other power hosts of the series
Specifications
| Parameter | Description |
|---|---|

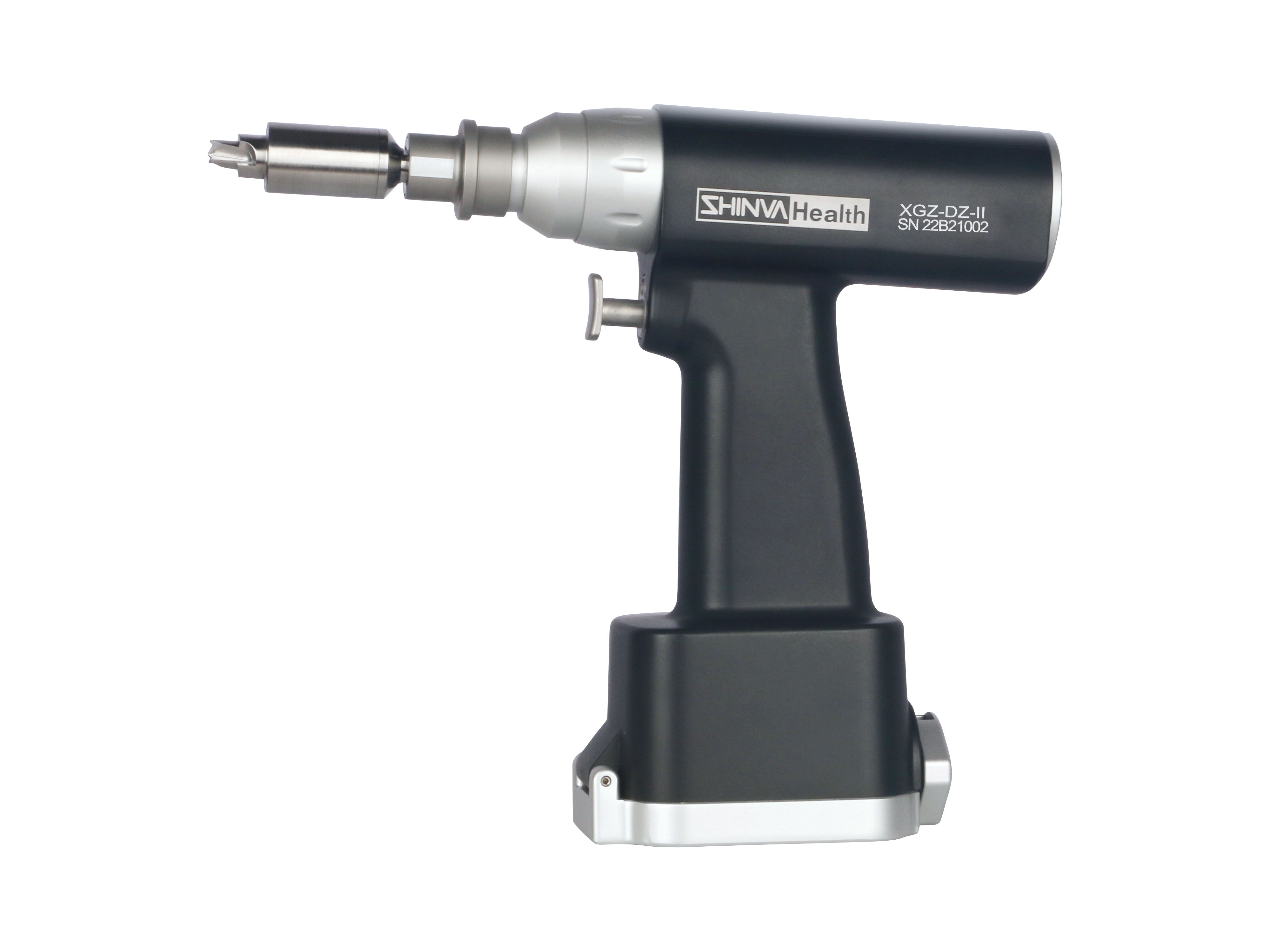

| Product Type | Battery Powered Craniotomy Drill |
| Model | XGZ‑DZ‑II |
| Item No. | HD10002 |
| Application | Neurosurgical craniotomy surgery |
| Power Supply | Ni-MH battery, 1800mAh, 14.4V |
| Sterilization Method | 134°C high‑temperature steam sterilization |
| Compatible Accessories | Self‑stopping drill bits, battery, charger and series orthopaedic attachments |
| Speed Range | 0-1000 rpm |
| Output Power | 150W |
| Rated Torque | ≥3.5Nm |
| No-load Noise | ≤65dB(A) |
| Radial Runout | ≤1mm |
| Charger Input Voltage | AC110-220V, 50-60Hz |
