Powerful Oscillating Cutting Performance
• Oscillation frequency: 0‑18000 cpm, output power 150W with strong power
• Oscillation angle: 4±0.5° for efficient bone resection
• Optimized for bone cutting in joint replacement and orthopaedic reconstruction surgery
Reliable Running Precision
• Radial runout ≤1 mm
• Stable movement during bone cutting
• Helps achieve controlled and predictable surgical cuts
Controlled Noise Level
• No‑load noise ≤75dB(A)
• Balanced mechanical design lowers intraoperative noise • Reduces acoustic interference in operating room
Rechargeable Battery & Great System Compatibility
• Ni‑MH battery: 1800mAh, 14.4V
• Wide charger input AC110‑220V, 50‑60Hz
• Interchangeable battery and charger with other power hosts of the series
Specifications
| Parameter | Description |
|---|---|
| Product Type | Battery Powered Oscillating Saw |
| Model | XGZ‑DJ‑I |
| Application | Orthopaedic joint operation |
| Power Supply | Ni‑MH battery, 1800mAh, 14.4V |
| Sterilization Method | 134°C high‑temperature steam sterilization |
| Compatible Accessories | Oscillating saw blades, battery, charger and series orthopaedic attachments |
| Oscillation Frequency | 0‑18000 cpm |
| Output Power | 150W |
| Oscillation Angle | 4±0.5° |
| No‑load Noise | ≤75dB(A) |
| Radial Runout | ≤1mm |
| Charger Input Voltage | AC110‑220V, 50‑60Hz |
Oscillating Saw Blade
| Oscillating saw blade | |
|---|---|
| Article No. | Specifications |

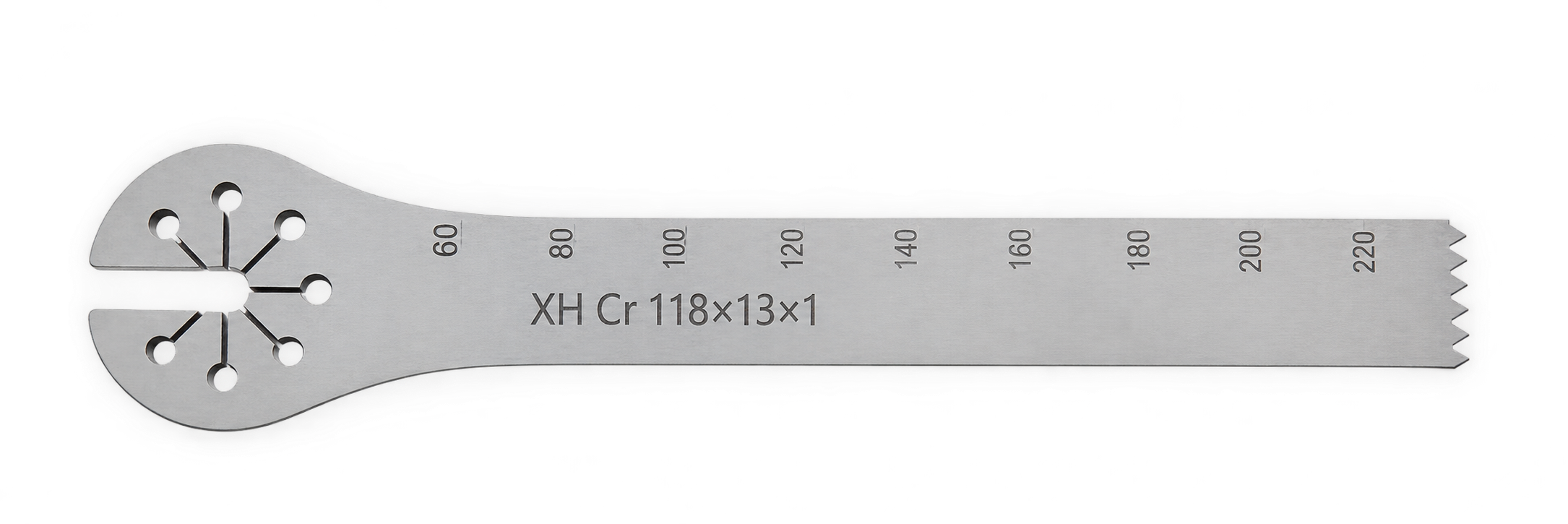

| HD10004-11-01 | XH Cr 118 × 13 × 1 |
| HD10004-11-03 | XH Cr 118 × 13 × 1.2 |
| Oscillating saw blade | |
|---|---|
| Article No. | Specifications |
| HD10004-11-02 | XH Cr 118 × 22 × 1 |
| HD10004-11-04 | XH Cr 118 × 22 × 1.2 |
| Oscillating saw blade | |
|---|---|
| Article No. | Specifications |

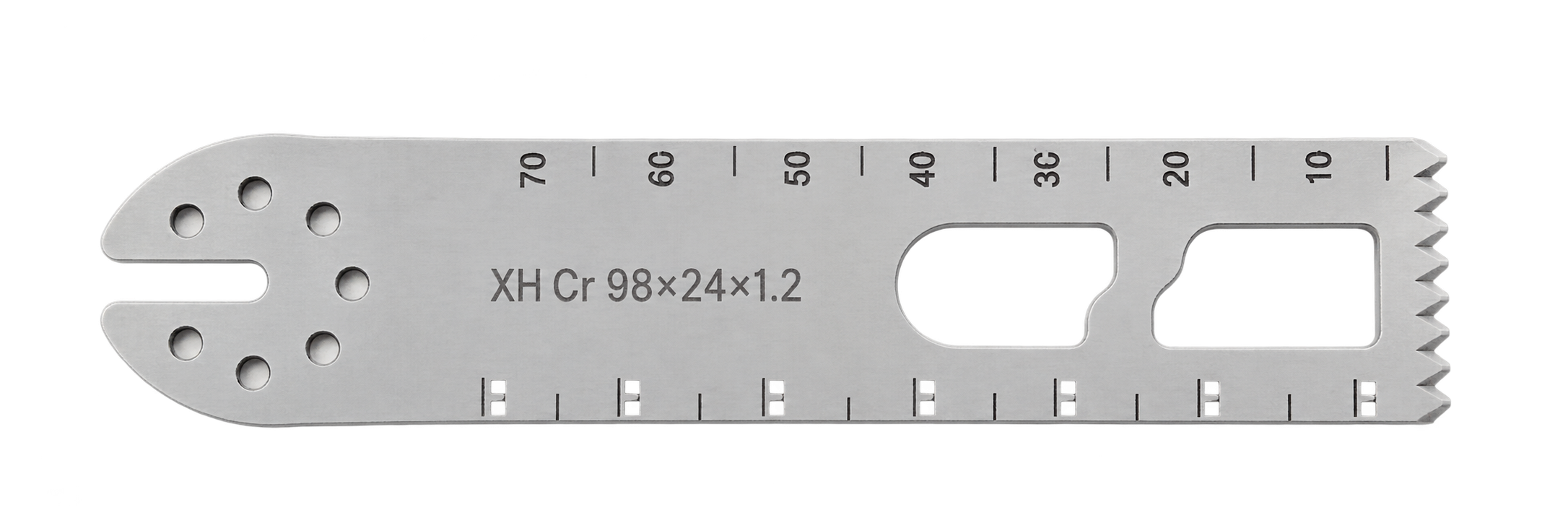

| HD10004-11-05 | XH Cr 98 × 24 × 1.2 |
| Oscillating saw blade | |
|---|---|
| Article No. | Specifications |

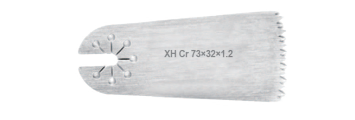

| HD10004-11-06 | XH Cr 73 × 32 × 1.2 |
