Product Introduction

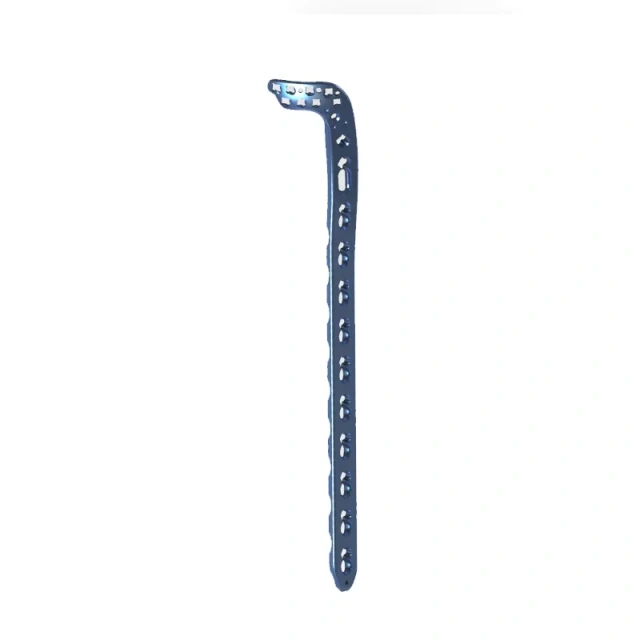

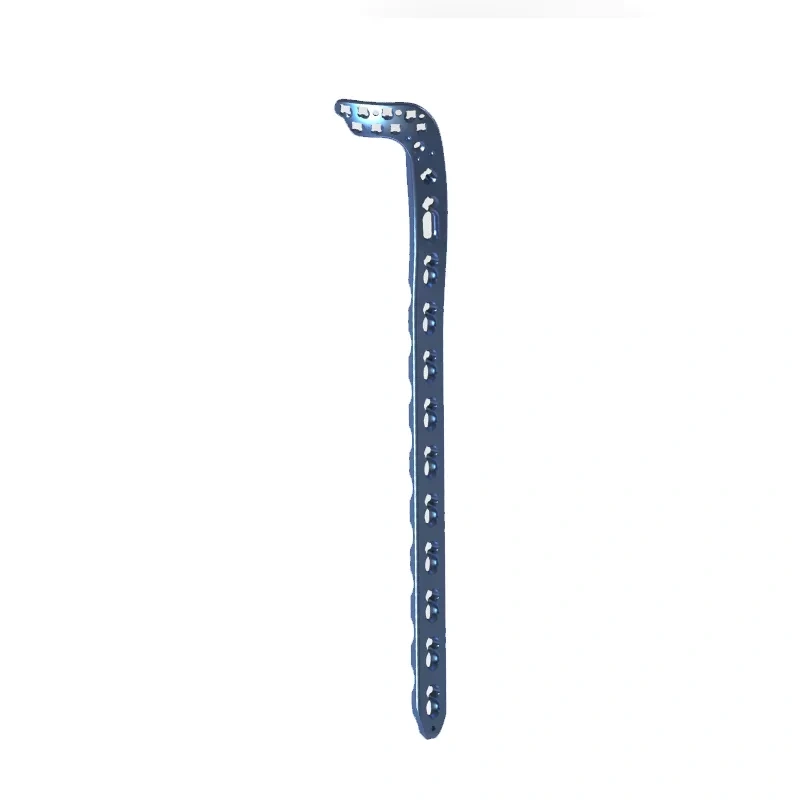

The Distal Lateral Tibial Universal Locking Plate is designed for internal fixation of complex distal tibial fractures.

The plate incorporates 30° conical polyaxial locking holes, allowing screws to be positioned up to 15° from the hole axis in multiple directions. This provides flexibility in screw trajectory selection according to fracture anatomy.

Threaded spherical screw heads engage with the locking holes to establish an angular-stable plate-screw-bone construct. The plate is anatomically contoured to the lateral distal tibia and features a low-profile body with rounded edges and a polished surface to help minimize soft tissue irritation.

Manufactured from TA3G pure titanium or TC4 titanium alloy, the plate is compatible with locking, cortical, and cannulated screws for different fixation requirements.

Features

• 30° Polyaxial Locking Holes: Allow screw angulation of up to 15° from the hole axis in multiple directions.

• Spherical Threaded Screw Heads: Provide secure engagement with the locking holes for angular-stable fixation.

• Anodized Surface Treatment: Provides corrosion resistance and supports material durability and biocompatibility.

• Self-Tapping Screw Tips: Sharp cutting edges facilitate screw insertion into the bone.

• Low-Profile Anatomical Design: Contoured to the lateral distal tibia to reduce soft tissue interference.

• Rounded Edges and Polished Finish: Help minimize irritation of surrounding soft tissues.

Advantage

• Interrupted Thread Design: Helps reduce the risk of cold welding between threaded components.

• Flexible Screw Trajectories: The ±15° polyaxial range allows screw placement to be adapted to complex fracture anatomy.

• Stable Locking Interface: The threaded screw-plate connection provides a secure angular-stable construct.

• Rotational Control: Multiple screw fixation can help resist rotational movement of fracture fragments.

• Screw Repositioning: Screws can be repositioned during the procedure while maintaining the locking function.

• No Additional Inserts Required: Polyaxial locking can be achieved without additional sleeves or auxiliary components.

• Flexible Fixation Options: The system supports locking fixation and compression according to the fracture and fixation requirements.

• Reduced Soft Tissue Irritation: The anatomical low-profile plate with rounded, polished edges helps minimize soft tissue interference.

Indications

The Distal Lateral Tibial Universal Locking Plate is indicated for internal fixation of:

• Distal tibial metaphyseal fractures

• Lateral tibial plateau fractures

• Comminuted distal tibial fractures

• Intra-articular and extra-articular fractures

• Osteoporotic fractures

• Complex distal tibial fractures requiring angular-stable fixation

Specifications
