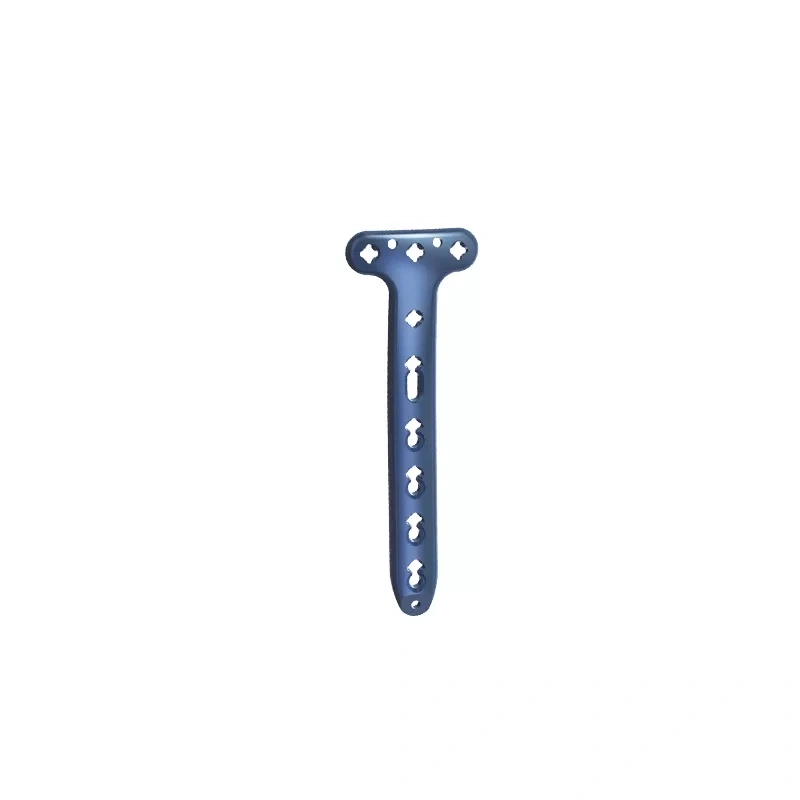

The Distal Posterolateral Tibial T-Shaped Universal Locking Plate is designed for internal fixation of distal tibial fractures, providing stable fixation and support for fracture fragments.
The plate features a 30° conical polyaxial locking hole system, allowing screws to be positioned up to 15° from the hole axis in multiple directions. This provides flexibility in selecting screw trajectories according to the fracture configuration.
Manufactured from TA3G pure titanium and TC4 titanium alloy, the plate provides mechanical strength and biocompatibility. Its low-profile anatomical design, rounded edges, and polished surface help reduce soft tissue irritation.
• Polyaxial Locking Holes: The 30° conical design allows screw angulation of up to 15° from the hole axis in multiple directions.
• Spherical Threaded Screw Heads: Engage securely with the locking holes to provide an angular-stable screw-plate connection.
• Self-Tapping Screws: Sharp cutting edges facilitate screw insertion and fixation.
• Anodized Surface: Provides corrosion resistance and supports material durability and biocompatibility.
• Screw Compatibility: Compatible with locking screws (II) and cannulated screws (III) for different fixation requirements.
• Low-Profile Design: The anatomically contoured plate helps reduce interference with surrounding soft tissues.
• Rounded Edges: Help minimize irritation to adjacent tissues.
• Polyaxial Flexibility: The 30° conical locking holes allow screw trajectories to be adjusted according to fracture anatomy.
• Stable Fixation: The locking interface provides a secure connection between the screw and plate.
• Versatile Screw Placement: Multiple screw trajectories allow fixation to be adapted to different fracture configurations.
• Rotational Stability: Multiple screw fixation can provide resistance to rotational movement and help maintain fragment position.
• Simplified Operation: Polyaxial locking does not require additional sleeves or inserts.
• Secure Locking Interface: The locking mechanism helps maintain screw engagement and reduce the risk of loosening.
• Reduced Soft Tissue Interference: The low-profile anatomical design and rounded edges help minimize irritation of surrounding tissues.
The Distal Posterolateral Tibial T-Shaped Universal Locking Plate is indicated for internal fixation of:
• Distal tibial fractures
• Tibial plateau fractures
• Comminuted fractures
• Intra-articular and extra-articular fractures
• Tibial shaft fractures
• Osteoporotic fractures
It is particularly applicable to posterolateral tibial fractures and fractures requiring polyaxial screw fixation.
| Model Number | Spec.(mm) | Compatible screws |
| 4034013 | 4 Holes×72 | 2.7 mm VA Locking Screws 2.7 mm Cortical Screw |
| 6 Holes×90 |
