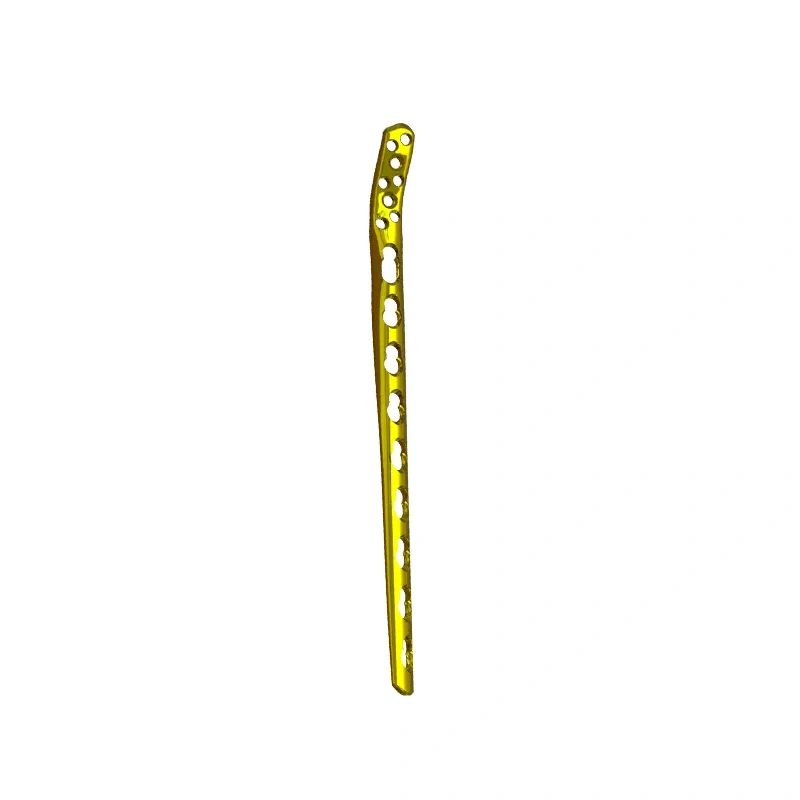

The Distal Posterolateral Fibula Locking Plate is designed for stable fixation of distal fibula fractures. Its 20° conical threaded locking holes provide angular stability with compatible locking screws, while ball-head screws allow flexible positioning with up to 15° angular deviation. The anatomically contoured, low-profile plate features rounded edges and a smooth surface to help minimize soft tissue irritation.
• 20° Conical Threaded Locking Holes provide secure screw-plate engagement and angular stability.
• Self-Tapping Screws facilitate insertion without pre-drilling.
• Anodized Surface improves corrosion resistance and surface durability.
• Ball-Head Screws allow adjustable screw positioning with up to 15° angular deviation.
• Anatomical Low-Profile Design conforms to the distal fibula and helps reduce soft tissue interference.
• Angular Stability: The locking screw mechanism provides a stable fixed-angle construct for distal fibula fixation.
• Flexible Screw Placement: Polyaxial locking allows screw trajectories to be adjusted according to fracture and anatomical requirements.
• Reduced Soft Tissue Irritation: The low-profile design with rounded edges helps minimize tissue interference.
• Versatile Fixation: Optimized screw thread design supports fixation in different bone conditions, including osteoporotic bone.
• Distal fibula fractures requiring internal fixation
• Distal fibula fractures requiring angular-stable fixation
• Complex or osteoporotic distal fibula fractures
| Model Number | Spec.(mm) | Compatible screws |
| 4032034 | 5 Holes×103 Left | 2.7/3.5 mm Locking Screws 3.5 mm Cortical Screw |
| 6 Holes×116 Left | ||
| 7 Holes×129 Left | ||
| 9 Holes×155 Left | ||
| 11 Holes×181 Left | ||
| 13 Holes×207 Left | ||
| 15 Holes×233 Left | ||
| 5 Holes×103 Right | ||
| 6 Holes×116 Right | ||
| 7 Holes×129 Right | ||
| 9 Holes×155 Right | ||
| 11 Holes×181 Right | ||
| 13 Holes×207 Right | ||
| 15 Holes×233 Right |
