Product Introduction

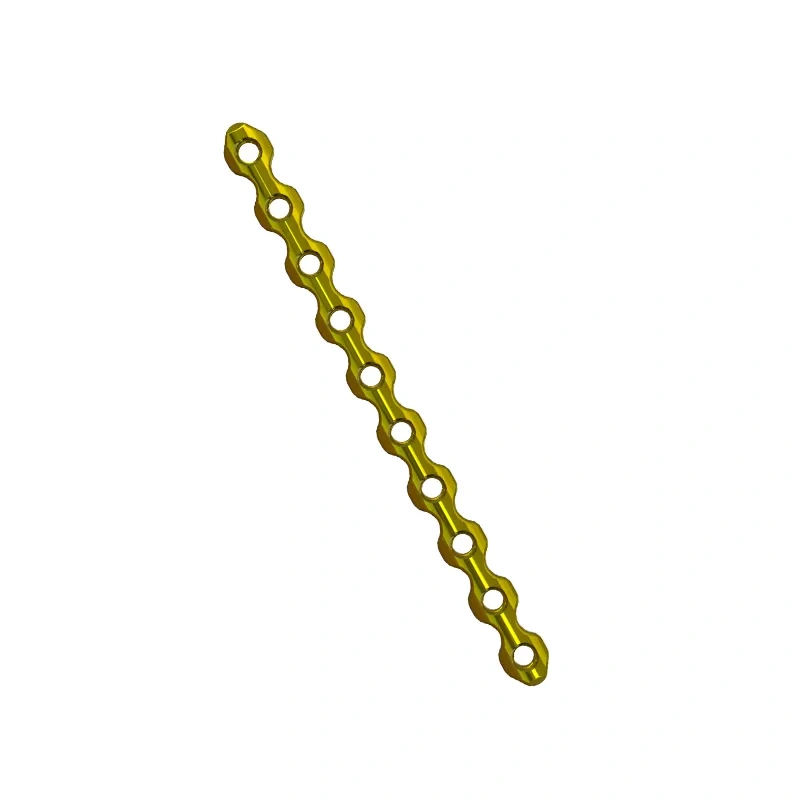

The Locking Reconstruction Plate is designed for internal fixation of complex fractures involving the extremities, clavicle, and pelvis. Its threaded locking hole system secures the screw head within the plate to form a stable bone-screw-plate construct and provide angular stability.

The plate features a low-profile, anatomically contoured design with smooth, rounded edges and a highly polished surface. This configuration is intended to reduce soft tissue irritation while allowing the plate to conform to complex anatomical regions.

Features

• 20° tapered locking holes designed to work with matching locking screws for angular stability

• Self-tapping screw tips for efficient insertion without pre-drilling

• Color anodized surface treatment for improved corrosion resistance and implant identification

• Anatomically pre-shaped plate body with beveled, rounded edges and a polished surface to help reduce tissue irritation

• Compatible with Locking Screws Type I and Cannulated Screws Type II

• Manufactured from TA3G pure titanium and TC4 titanium alloy for biocompatibility and mechanical strength

Advantage

• Stable angular fixation provided by the 20° conical locking interface between the plate and screw

• Low-profile geometry with smooth contours helps minimize soft tissue irritation

• Larger screw diameters and shallow, blunt thread profiles improve the screw-bone interface

• Thread depth is adapted to screw size and bone type: shallow threads are used with Ø1.5 mm and Ø2.0 mm screws for improved grip, while deeper threads are used with Ø6.5 mm and Ø7.3 mm screws for cancellous bone fixation

Indications

Internal fixation of fractures involving:

• Upper and lower extremities

• Clavicle

• Pelvic ring and acetabular regions

Suitable for complex anatomical areas requiring a contourable plate and angular-stable fixation.

Specifications
