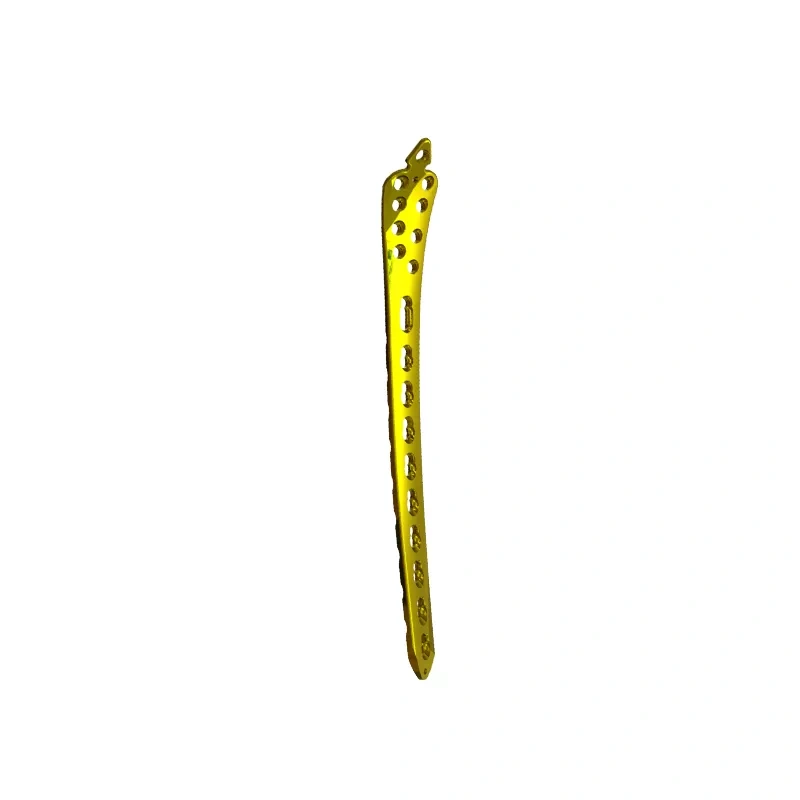

The Distal Tibia Medial Locking Plate is designed for anatomical fixation of fractures involving the medial distal tibia. Its 20° conical threaded locking holes provide angular stability through a fixed-angle screw-plate construct without requiring plate-to-bone compression. The anatomically contoured, low-profile plate features polished rounded edges to help minimize soft tissue irritation and preserve periosteal blood supply. Manufactured from TA3G pure titanium or TC4 titanium alloy, the system provides biocompatibility and mechanical performance.
• 20° Conical Locking Holes provide secure angular stability with compatible locking screws.
• Self-Tapping Screw Design facilitates screw insertion without pre-drilling.
• Color-Anodized Surface improves corrosion resistance and implant identification.
• Ball-Head Cortical Screws are compatible with compression and multi-directional holes for axial compression when required.
• Low-Profile Polished Design with rounded edges helps reduce soft tissue interference.
• Optimized Thread Geometry provides different thread depths according to screw diameter and bone application.
• Titanium Construction using TA3G pure titanium or TC4 titanium alloy.
• Angular Stability: The fixed-angle locking construct provides stable fixation in comminuted or osteoporotic fractures.
• Reduced Soft Tissue Irritation: The low-profile, polished design helps minimize tissue interference.
• Biological Fixation: Locking fixation does not require compression of the plate against the bone, helping preserve periosteal blood supply.
• Versatile Fixation: Compatible with different screw types for various fracture configurations.
• Optimized Screw-Bone Interface: Tailored thread geometry supports fixation in cortical and cancellous bone.
Internal fixation of fractures involving:
• Distal tibial shaft and metaphyseal region
• Medial malleolar extension fractures
• Extra-articular or simple intra-articular distal tibial fractures
• Comminuted or osteoporotic distal tibial fractures
• Fractures requiring minimally invasive osteosynthesis (MIO)
| Model Number | Spec.(mm) | Compatible screws |
| 4032030 | 4 Holes×116 Left | 3.5 mm Locking Screws 3.5 mm Cortical Screw |
| 6 Holes×142 Left | ||
| 8 Holes×168 Left | ||
| 10 Holes×194 Left | ||
| 12 Holes×220 Left | ||
| 14 Holes×246 Left | ||
| 4 Holes×116 Right | ||
| 6 Holes×142 Right | ||
| 8 Holes×168 Right | ||
| 10 Holes×194 Right | ||
| 12 Holes×220 Right | ||
| 14 Holes×246 Right |
