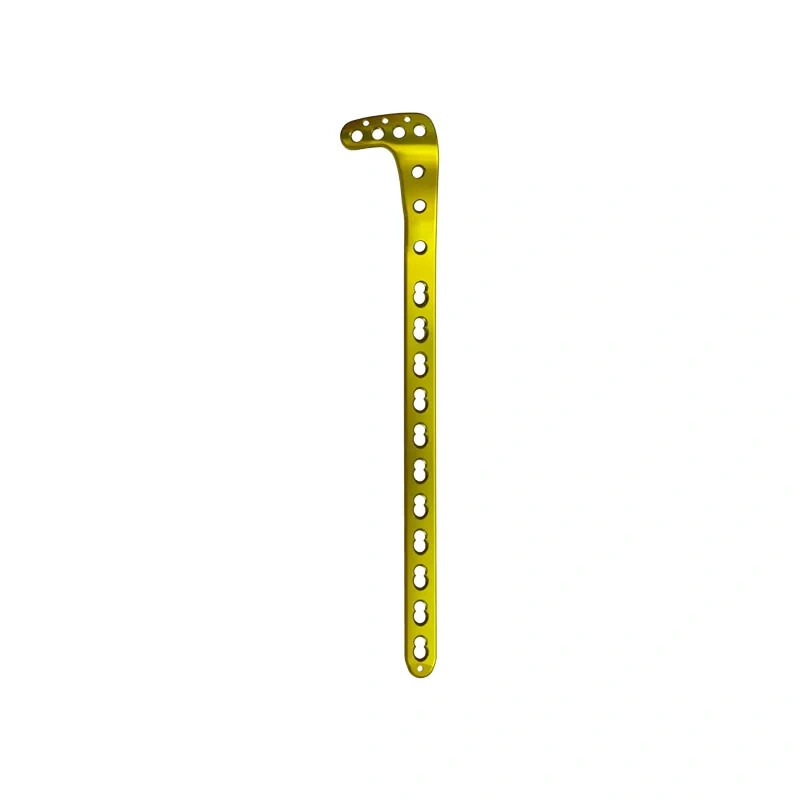

The Lateral Proximal Tibia Locking Plate is designed for anatomical fixation of lateral tibial plateau fractures. Its 20° conical threaded locking holes provide angular stability through a fixed-angle screw-plate construct without requiring plate-to-bone compression. The pre-contoured, low-profile plate features polished rounded edges to help minimize soft tissue irritation. The system is compatible with cortical, locking, and cannulated screws, with optimized thread profiles for fixation in cortical and cancellous bone.
• Anatomically Contoured Design conforms to the lateral proximal tibia with smooth, rounded edges.
• 20° Conical Locking Holes provide angular stability with compatible locking screws.
• Self-Tapping Screws facilitate insertion without pre-drilling.
• Color-Anodized Surface improves corrosion resistance and implant identification.
• Multiple Screw Options include ball-head and conical-threaded designs for compression and locking applications.
• Optimized Thread Geometry provides different thread depths according to screw diameter and bone type.
• Titanium Construction using TA3G pure titanium or TC4 titanium alloy.
• Angular Stability: The 20° conical locking mechanism provides a fixed-angle construct for stable fracture fixation.
• Reduced Soft Tissue Irritation: The low-profile, polished design helps minimize soft tissue interference.
• Versatile Fixation: Compatible with locking, non-locking, and cannulated screws for different fixation requirements.
• Preserved Periosteal Blood Supply: Locking fixation does not require compression of the plate against the bone.
• Optimized Screw-Bone Interface: Tailored thread geometry supports fixation in cortical and cancellous bone.
Internal fixation of fractures involving:
• Lateral tibial plateau fractures, including Schatzker types I–III
• Proximal tibial metaphyseal-diaphyseal junction fractures
• Multifragmentary or osteoporotic tibial plateau fractures
• Proximal tibial fracture-dislocations
| Model Number | Spec.(mm) | Compatible screws |
| 4032029 | 4 Holes×76 Left | 3.5 mm Locking Screws 3.5 mm Cortical Screw |
| 6 Holes×102 Left | ||
| 8 Holes×128 Left | ||
| 10 Holes×154 Left | ||
| 12 Holes×180 Left | ||
| 14 Holes×206 Left | ||
| 16 Holes×232 Left | ||
| 4 Holes×76 Right | ||
| 6 Holes×102 Right | ||
| 8 Holes×128 Right | ||
| 10 Holes×154 Right | ||
| 12 Holes×180 Right | ||
| 14 Holes×206 Right | ||
| 16 Holes×232 Right |
