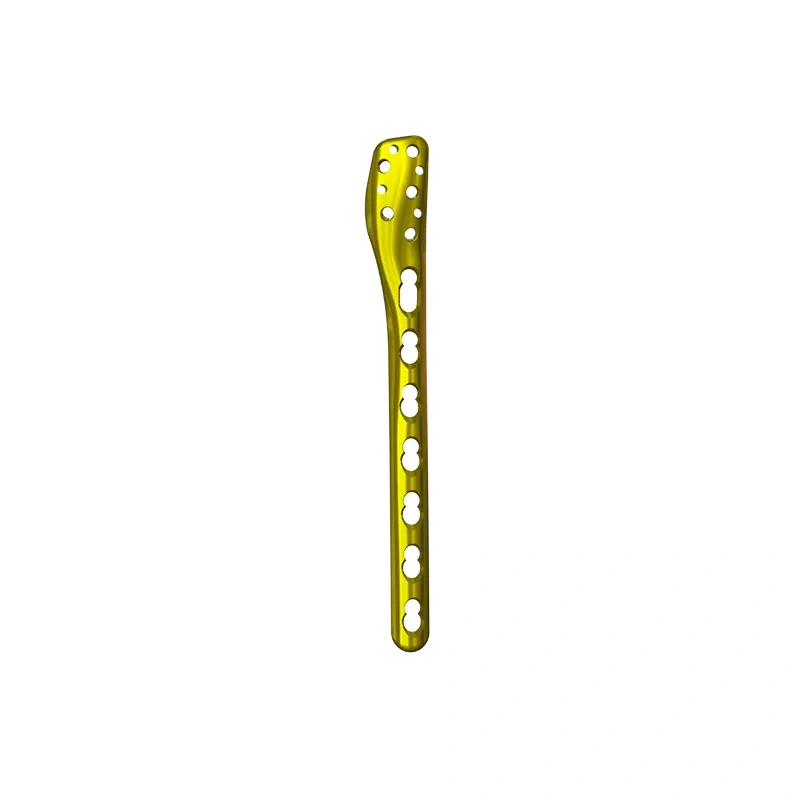

The Distal Lateral Fibula Locking Plate is designed for stable fixation of distal fibula fractures. Its 20° conical threaded polyaxial locking holes provide angular stability with compatible locking screws, while ball-head screws allow flexible positioning with up to 15° angular deviation. The anatomically contoured, low-profile plate is designed to conform to the distal fibula and help minimize soft tissue irritation.
• 20° Conical Polyaxial Locking Holes provide angular stability with compatible locking screws.
• Self-Tapping Screws facilitate insertion without pre-drilling.
• Anodized Surface improves corrosion resistance and surface durability.
• Ball-Head Screws allow adjustable screw positioning with up to 15° angular deviation.
• Anatomical Low-Profile Design conforms to the distal fibula and helps reduce soft tissue interference.
• Angular Stability: The locking mechanism provides a stable screw-plate construct for distal fibula fixation.
• Flexible Screw Positioning: Polyaxial locking allows screw trajectories to be adjusted according to anatomical and fracture requirements.
• Reduced Soft Tissue Irritation: The low-profile design with rounded edges helps minimize tissue interference.
• Fixation in Osteoporotic Bone: The locking construct provides angular stability for fixation in compromised bone conditions.
• Distal fibula fractures requiring internal fixation
• Distal fibula fractures requiring angular-stable fixation
• Complex or osteoporotic distal fibula fractures
| Model Number | Spec.(mm) | Compatible screws |
| 4032033 | 5 Holes×99 Left | 2.7/3.5 mm Locking Screws 3.5 mm Cortical Screw |
| 6 Holes×112 Left | ||
| 7 Holes×125 Left | ||
| 9 Holes×151 Left | ||
| 11 Holes×177 Left | ||
| 5 Holes×99 Right | ||
| 6 Holes×112 Right | ||
| 7 Holes×125 Right | ||
| 9 Holes×151 Right | ||
| 11 Holes×177 Right |
