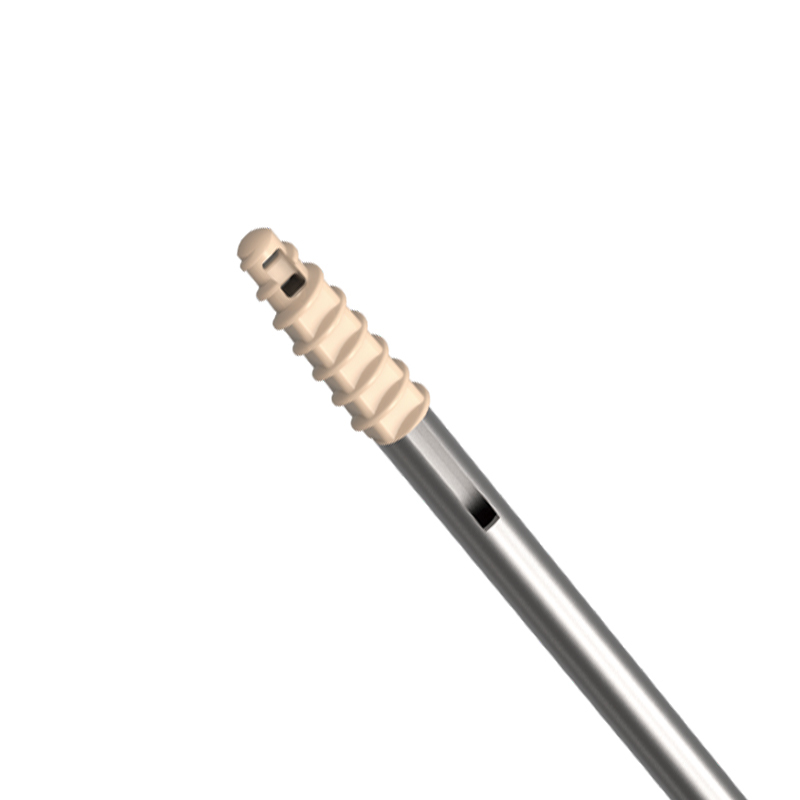

The Knotless PEEK Ligament Anchor System is designed for soft tissue-to-bone fixation in orthopedic procedures. The system consists of a PEEK anchor, UHMWPE suture, and insertion instruments with a stainless steel 630 handle and rod. Supplied sterile for single use, it enables tendon or ligament reattachment without knot tying. After anchor insertion into bone, the attached suture passes through the target tissue, allowing intraoperative adjustment of suture tension.
• Knotless Design: Supports soft tissue fixation without conventional knot tying and can be used in selected double-row repair techniques.
• Adjustable Suture Tension: Allows intraoperative tension adjustment to accommodate fixation requirements.
• Multiple Size Options: Includes different anchor dimensions to meet various procedural needs.

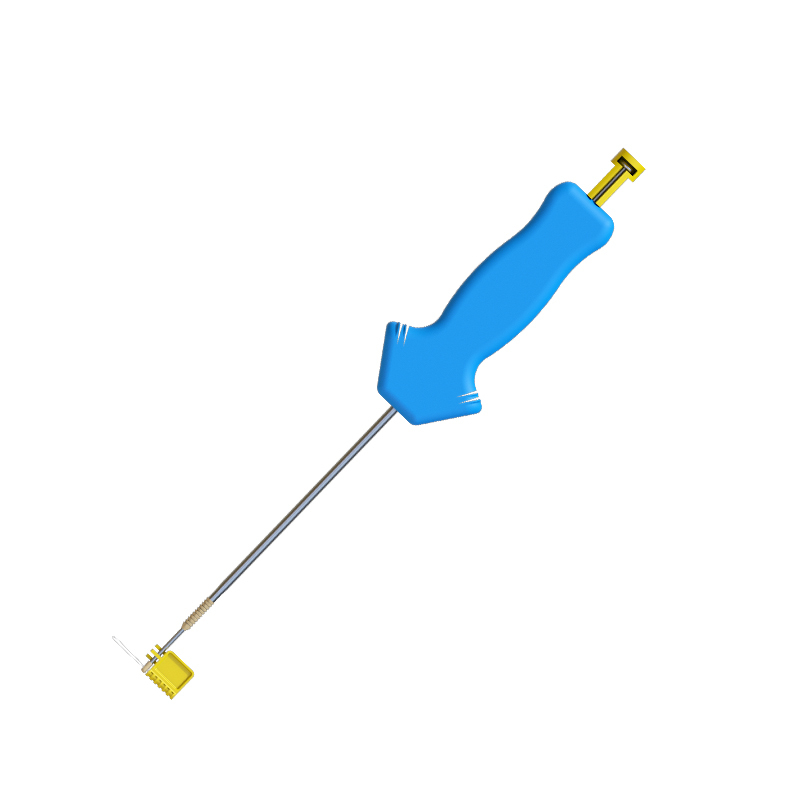

• Ergonomic Insertion Instrument: Features a textured handle designed to support instrument control during implantation.
• Material Composition: Incorporates a PEEK anchor, UHMWPE suture, and stainless steel 630 insertion components.
• Simplified Fixation Technique: Eliminates the need for conventional knot tying during anchor fixation.
• Biocompatible Materials: Uses PEEK and UHMWPE components intended for surgical applications.
• Adjustable Fixation: Enables suture tension adjustment to support tissue-to-bone apposition.
• Versatile Application: Designed for use in selected tendon and ligament repair procedures.
The system is intended for tendon or ligament reattachment and soft tissue fixation in procedures including:
• Shoulder: Rotator cuff repair and labral reconstruction.
• Knee: ACL/PCL graft fixation and meniscal root repair.
• Ankle: ATFL/CFL repair and peroneal tendon stabilization.
• Hip and Elbow: Capsular plication and biceps or triceps tendon fixation.
| Model Number | Specification (mm) |
|---|---|
| 5010400 | 2.5mm×8mm |
| 2.9mm×15.5mm | |
| 3.5mm×19.5mm | |
| 4.5mm×24mm |
