Product Introduction

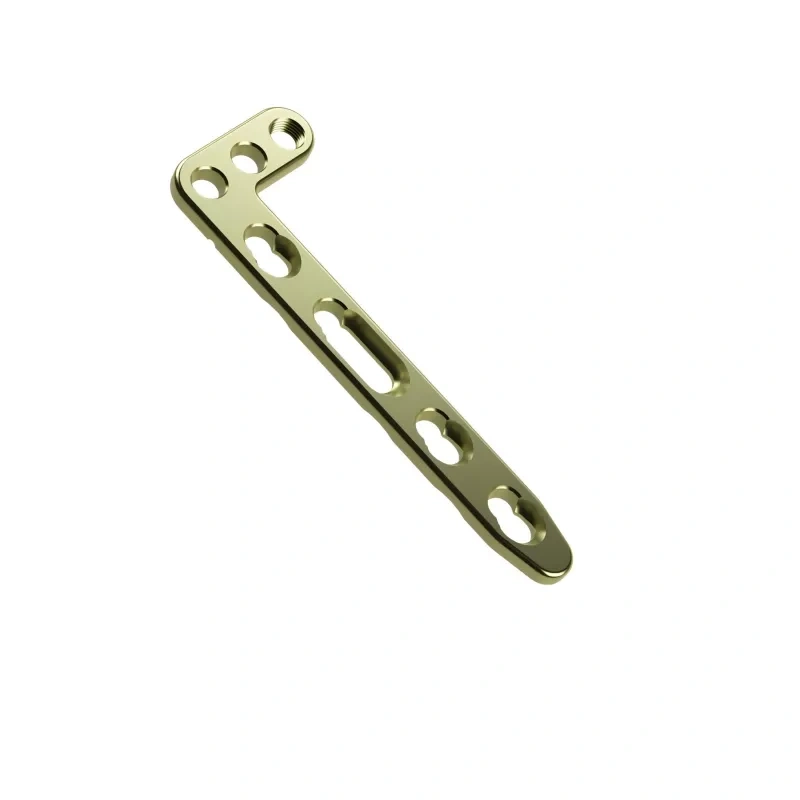

The Distal Radius L-Shaped Locking Plate is designed for internal fixation of distal radius fractures, with particular application to fractures involving the dorsal rim.

The plate features a 20° conical locking hole system that works with locking screws to form a fixed-angle construct and provide angular stability. This design allows stable fixation without requiring direct compression of the plate against the bone.

With an anatomically contoured low-profile profile, rounded edges, and a highly polished surface, the plate is designed to reduce soft tissue irritation while helping preserve the blood supply around the fracture site.

The implant is manufactured from TA3G pure titanium and TC4 titanium alloy, providing biocompatibility and mechanical strength for orthopedic fixation.

Features

• 20° conical locking holes compatible with locking screws for fixed-angle fixation

• Sharp self-tapping screw tips for easier insertion and secure bone purchase

• Anodized surface treatment for improved corrosion resistance and implant identification

• Ball-headed cortical screws compatible with compression and combination holes

• Anatomically contoured plate body with rounded edges and a polished low-profile surface to help minimize soft tissue irritation

Advantages

• Angular stability provides secure fixation without requiring plate-to-bone compression

• Reduced periosteal disruption helps preserve the blood supply around the fracture site

• Screw design with larger thread diameters and shallow, blunt thread profiles improves thread engagement

• Thread depth is adapted to screw size and bone type to optimize the bone-screw interface

• Low-profile construction with smooth, rounded edges helps minimize soft tissue irritation

Indications

Internal fixation of distal radius fractures, including:

• Dorsal rim fractures

• Partial articular fractures

• Intra-articular or extra-articular distal radius fractures

• Fractures requiring angular stability and secure fixation around the wrist


Specifications
