Product Introduction

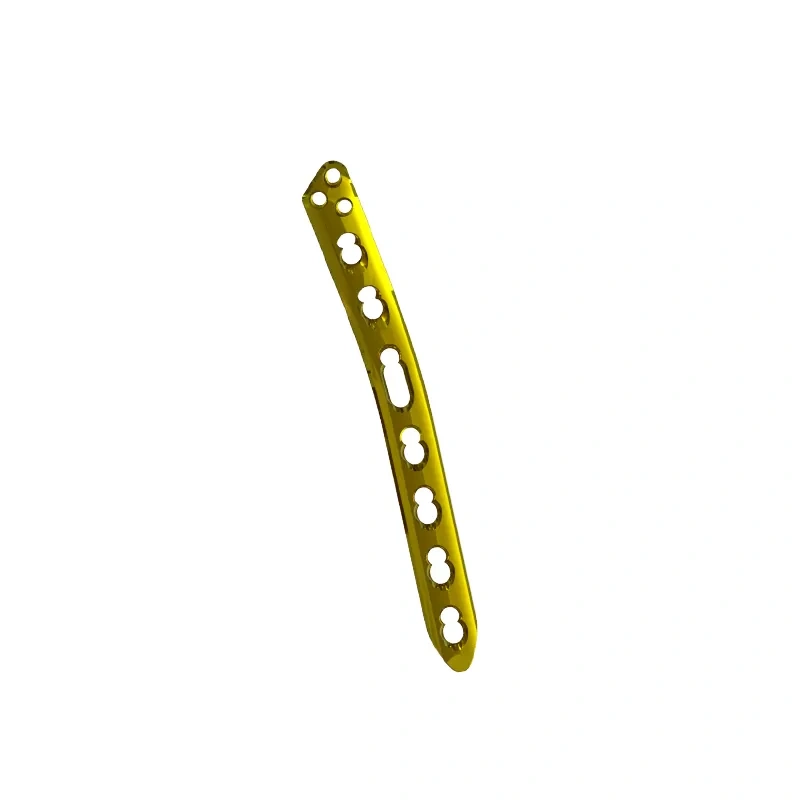

The Distal Medial Humerus Locking Plate is designed for fixation of fractures involving the distal medial humerus. Its anatomically contoured profile follows the shape of the medial distal humerus, while 20° conical locking holes provide angular stability with compatible locking screws.

The plate supports fixed-angle fixation while reducing the need for direct compression between the plate and bone, helping preserve the periosteal blood supply and minimize soft tissue irritation. Compatibility with locking and compression screws enables flexible fixation strategies for complex distal humeral fractures.

Features

Angular Stability

• 20° conical locking holes provide angular stability when used with matching locking screws.
• Compatible with locking, non-locking, and multidirectional compression screws for flexible fixation options.

Screw Design

• Sharp self-tapping thread design facilitates screw insertion.
• Ball-head cortical screws can be used with dynamic compression units to support compression fixation.

Plate Design

• Anatomically pre-contoured geometry is tailored to the distal medial humerus and is designed to reduce the need for intraoperative bending.
• Low-profile construction, smooth edges, and a high-polish finish help reduce soft tissue irritation.
• Available in multiple lengths to accommodate anatomical variation.

Surface Treatment

• Anodized surface treatment enhances corrosion resistance and facilitates screw identification.

Advantages

• Fixed-angle stability supports fixation of complex and comminuted distal humeral fractures.
• Pre-contoured design helps simplify plate positioning by reducing the need for intraoperative contouring.
• Reduced plate-to-bone compression helps preserve the periosteal blood supply.
• Hybrid fixation allows the use of different screw types according to fracture configuration and surgical requirements.
• Available in TA3G pure titanium or TC4 titanium alloy, providing biocompatibility, mechanical strength, and fatigue resistance.

Indications

• Distal medial humerus fractures
• Fixation of fractures in osteoporotic bone
• Complex intra-articular distal humeral fractures
• Elbow fracture-dislocations
• Distal humerus non-unions and malunions requiring stable fixation
• Dual-plating procedures using medial and lateral plates for comminuted distal humeral fractures

Specifications
