Product Introduction

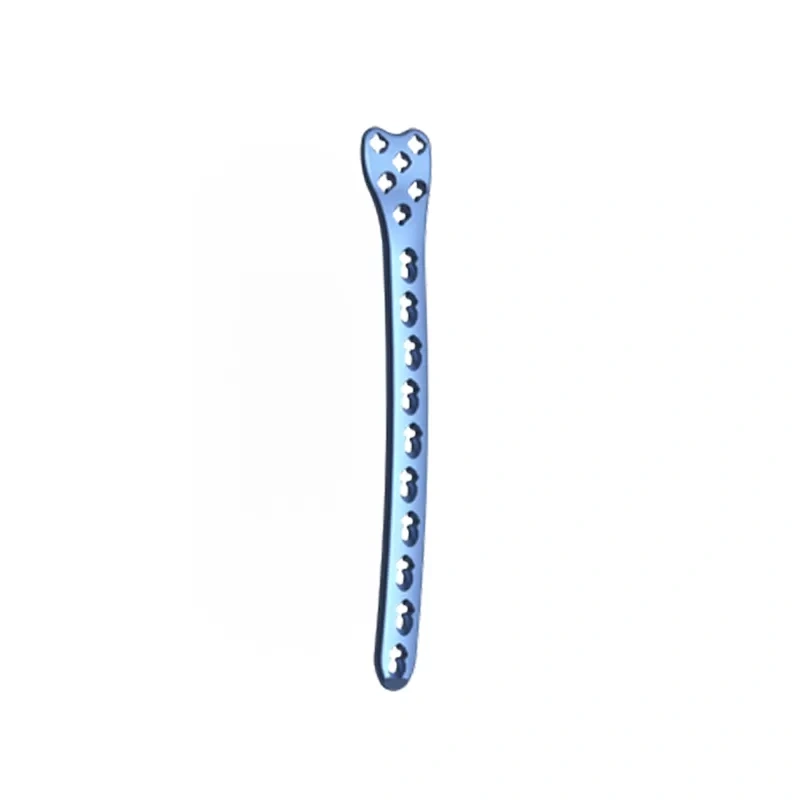

The Distal Femoral Lateral Universal Locking Plate is designed for internal fixation of femoral fractures, particularly those involving the distal femur.

The plate incorporates a 30° conical variable-angle locking hole system, allowing screws to be directed up to 15° from the central axis in multiple directions. This provides flexibility in selecting screw trajectories according to the fracture configuration while maintaining angular stability.

The plate is anatomically shaped to the lateral aspect of the distal femur, with rounded edges and a polished surface to help minimize soft tissue irritation. It is manufactured from TA3G pure titanium and TC4 titanium alloy, providing mechanical strength, biocompatibility, and corrosion resistance.

Features

• 30° conical locking holes designed to provide angular stability with compatible locking screws

• Multidirectional screw positioning with up to 15° deviation from the hole axis

• Threaded locking screw heads for a secure plate-screw-bone connection

• Ball-headed screws compatible with compression holes for axial compression

• Anatomically contoured plate body with rounded edges and a polished surface to help reduce soft tissue irritation

Advantage

• Angular stability provided by the conical locking interface between the plate and locking screws

• Low-profile plate design helps minimize soft tissue irritation

• Multidirectional screw placement allows the fixation trajectory to be adjusted according to different fracture configurations

• TA3G pure titanium and TC4 titanium alloy provide mechanical strength, biocompatibility, and corrosion resistance

• Locking screws and locking holes form a stable fixation construct and help reduce screw loosening

• The combination of variable-angle fixation and anatomical plate design provides flexibility for both simple and complex distal femoral fractures

Indications

• Distal femoral fractures, including supracondylar and intercondylar fractures

• Fractures requiring angular-stable fixation and secure internal fixation

• Distal femur fractures requiring adjustable screw trajectories and stable fixation
