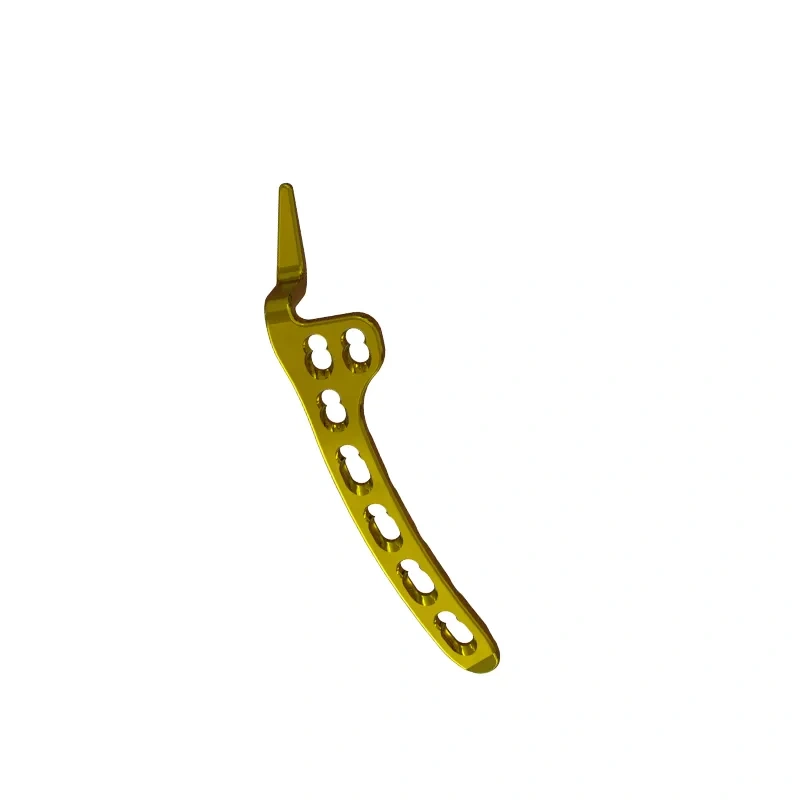

The Clavicle Hook Locking Plate is specifically designed for internal fixation of lateral clavicle fractures and stabilization of acromioclavicular joint injuries.
The plate combines angular-stable locking technology with an integrated hook that engages beneath the acromion to support fracture reduction and acromioclavicular stabilization.
The plate incorporates 20° conical threaded locking holes for secure screw-plate engagement. Its low-profile, highly polished surface and rounded contours are designed to minimize soft-tissue irritation, while the locking configuration avoids the need for direct compression of the plate against the bone.
The conical threaded locking holes provide an angular-stable interface when used with compatible locking screws, supporting secure fixation of the plate to the bone.
The hook extends beneath the acromion to provide subacromial engagement and support during fixation of lateral clavicle fractures and acromioclavicular injuries.
Sharp screw tips facilitate insertion and provide self-tapping functionality, helping simplify screw placement.
The anodized surface treatment provides color identification of the implant and contributes to surface corrosion resistance.
The low-profile plate with rounded edges and polished surfaces is designed to reduce soft-tissue irritation and potential impingement.
The plate is anatomically contoured to follow the curvature of the clavicle, supporting an appropriate fit during implantation.
The plate is compatible with cortical and cannulated screws in various diameters, providing flexibility for different fixation requirements.
The combination of angular-stable locking and the integrated hook provides support for fixation of lateral clavicle fractures and acromioclavicular dislocations.
The locking mechanism secures the screws to the plate without requiring the plate to be compressed directly against the bone, helping limit disruption at the bone-plate interface.
The integrated hook provides direct support beneath the acromion without relying on sutures or additional implants for the hook function.
Smooth contours, rounded edges, and polished surfaces are designed to reduce contact and irritation of surrounding soft tissues.
Compatibility with different screw types and diameters provides flexibility for fixation according to fracture characteristics and bone quality.
The Clavicle Hook Locking Plate is indicated for internal fixation and stabilization of:
| Model Number | Specification (mm) | Compatible Screws |
|---|---|---|
| 4032007 | 4 Holes × 70 (15) Left | 3.5 mm Locking Screw 3.5 mm Cortical Screw |
| 4 Holes × 70 (18) Left | ||
| 5 Holes × 85 (15) Left | ||
| 5 Holes × 85 (18) Left | ||
| 6 Holes × 99 (15) Left | ||
| 6 Holes × 99 (18) Left | ||
| 7 Holes × 112 (15) Left | ||
| 7 Holes × 112 (18) Left | ||
| 4 Holes × 70 (15) Right | ||
| 4 Holes × 70 (18) Right | ||
| 5 Holes × 85 (15) Right | ||
| 5 Holes × 85 (18) Right | ||
| 6 Holes × 99 (15) Right | ||
| 6 Holes × 99 (18) Right | ||
| 7 Holes × 112 (15) Right | ||
| 7 Holes × 112 (18) Right |
