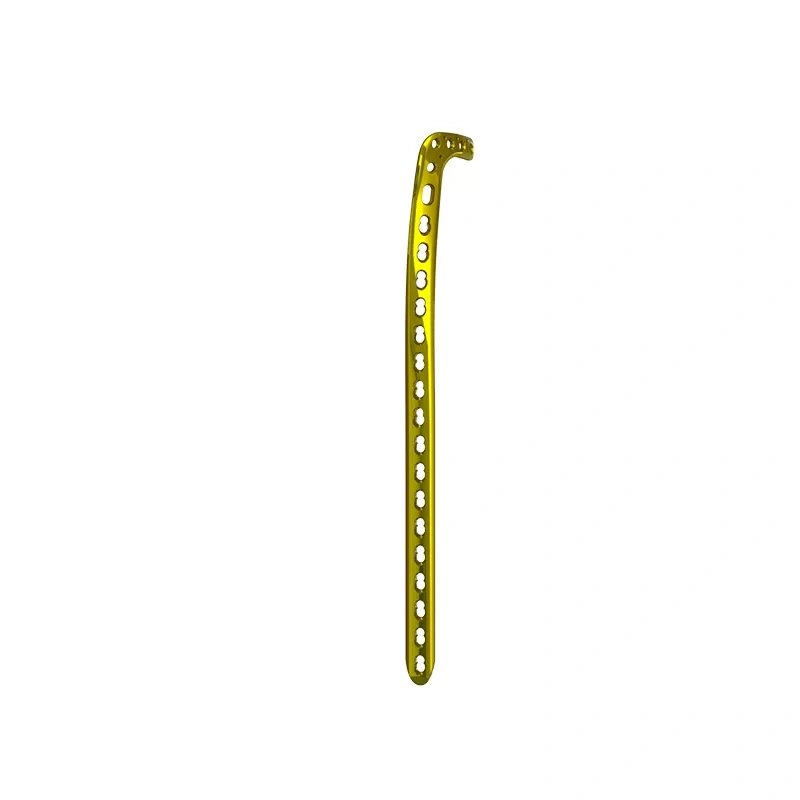

The Anterolateral Distal Tibia Locking Plate is designed for internal fixation of fractures involving the anterolateral distal tibia. The plate is anatomically contoured to the distal tibia and features a low-profile body with rounded edges and a polished surface to help reduce soft tissue irritation.
The plate incorporates 20° conical threaded locking holes, allowing the screw heads to lock securely into the plate and form a fixed-angle construct. This provides angular stability without requiring direct compression of the plate against the bone.
Manufactured from TA3G pure titanium or TC4 titanium alloy, the plate provides mechanical strength, biocompatibility, and corrosion resistance. It is compatible with locking and cortical screws for different fixation requirements.
• 20° Conical Locking Holes: Secure the screw heads within the plate to provide fixed-angle stability.
• Self-Tapping Screw Tips: Facilitate screw insertion and simplify the fixation procedure.
• Anodized Surface Treatment: Provides corrosion resistance and supports material durability.
• Ball-Head Cortical Screws: Compatible with compression, dynamic, and variable-angle fixation holes according to the plate configuration.
• Anatomical Low-Profile Design: Contoured to the anterolateral distal tibia with rounded edges and a polished surface to minimize soft tissue interference.
• Angular Stability: The fixed-angle locking interface provides stable screw-to-plate fixation without requiring direct plate-to-bone compression.
• Material Performance: TA3G pure titanium or TC4 titanium alloy provides mechanical strength, biocompatibility, and corrosion resistance.
• Anatomical Fit: The pre-contoured plate follows the anterolateral distal tibial surface to support appropriate plate positioning.
• Reduced Soft Tissue Irritation: The low-profile body, rounded edges, and polished surface help minimize interference with surrounding tissues.
• Versatile Fixation: Compatibility with locking and cortical screws provides different fixation options according to fracture configuration.
The Anterolateral Distal Tibia Locking Plate is indicated for internal fixation of:
• Anterolateral distal tibial fractures
• Distal tibial metaphyseal fractures
• Comminuted distal tibial fractures
• Intra-articular and extra-articular distal tibial fractures
• Osteoporotic distal tibial fractures
• Complex distal tibial fractures requiring angular-stable fixation
• Fractures suitable for open or minimally invasive plate osteosynthesis (MIPO)
| Model Number | Spec.(mm) | Compatible screws |
| 4032032 | 5 Holes×80 Left | 3.5 mm Locking Screws 3.5 mm Cortical Screw |
| 7 Holes×106 Left | ||
| 9 Holes×132 Left | ||
| 11 Holes×158 Left | ||
| 13 Holes×184 Left | ||
| 15 Holes×210 Left | ||
| 5 Holes×80 Right | ||
| 7 Holes×106 Right | ||
| 9 Holes×132 Right | ||
| 11 Holes×158 Right | ||
| 13 Holes×184 Right | ||
| 15 Holes×210 Right |
