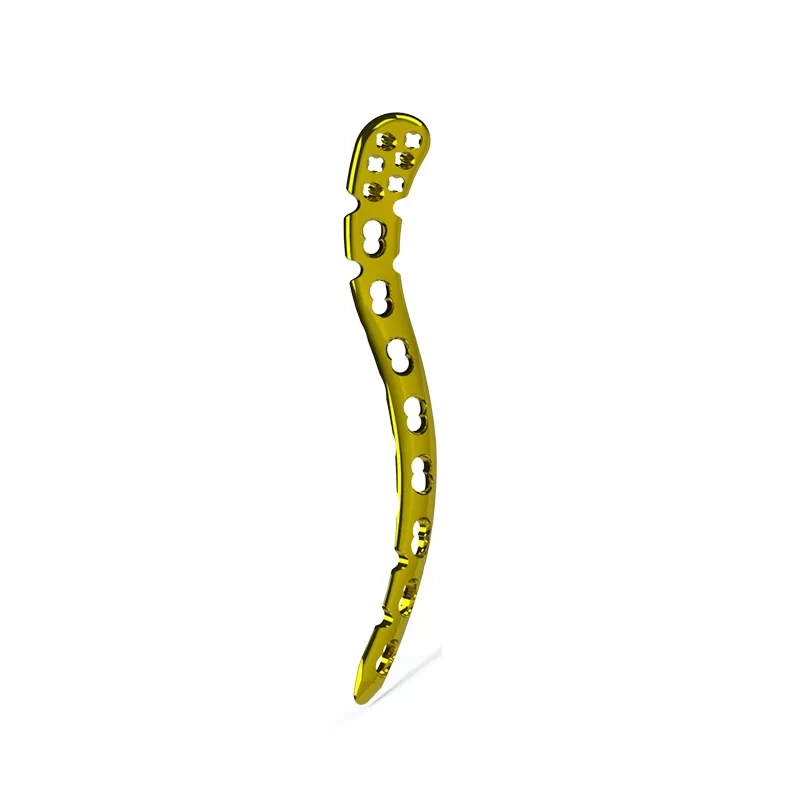

The Anterior-Superior Clavicle Locking Plate is designed for internal fixation of clavicular fractures, combining anatomical contouring with angular-stable locking technology to provide secure and stable fixation.
The plate features 20° conical locking holes that engage with threaded screw heads to create a secure plate-screw-bone construct. The variable-angle configuration supports appropriate screw positioning while maintaining angular stability.
Specifically contoured to follow the anterior-superior surface of the clavicle, the plate incorporates a low-profile design with rounded edges and a highly polished surface. These features are intended to reduce soft-tissue irritation and limit disruption at the periosteal interface during implantation.
The 20° conical locking holes are designed to engage with compatible threaded screw heads, creating a secure locking interface and providing angular stability.
Sharp, self-tapping screw tips facilitate screw insertion and help simplify the implantation procedure without requiring separate pre-tapping.
The anodized surface treatment provides color identification and contributes to the corrosion resistance of the implant surface.
The plate body is pre-contoured to the anterior-superior clavicle, with a low-profile shape, rounded edges, and a polished surface designed to reduce soft-tissue irritation.
The ball-head screw design allows eccentric screw insertion when dynamic compression is required. The system is compatible with both locking and cortical screw configurations.
The 20° conical locking interface provides a secure screw-to-plate connection and supports stable fixation, including applications involving reduced bone quality.
Sharp self-tapping screw tips facilitate insertion and help streamline the surgical procedure.
The low-profile, polished plate with rounded edges is designed to minimize soft-tissue irritation and reduce interference with surrounding anatomical structures.
The pre-contoured plate follows the anatomical curvature of the clavicle, helping reduce the need for extensive intraoperative plate bending.
The system supports the use of both cortical and cancellous screws, providing flexibility for different fracture patterns and fixation requirements.
The Anterior-Superior Clavicle Locking Plate is designed for internal fixation of:
| Model Number | Specification (mm) | Compatible Screws |
|---|---|---|
| 4032006 | 6 Holes × 110 | 3.5 mm Locking Screw 3.5 mm Cortical Screw |
| 7 Holes × 124 | ||
| 8 Holes × 136 | ||
| 6 Holes × 110 | ||
| 7 Holes × 124 | ||
| 8 Holes × 136 |
