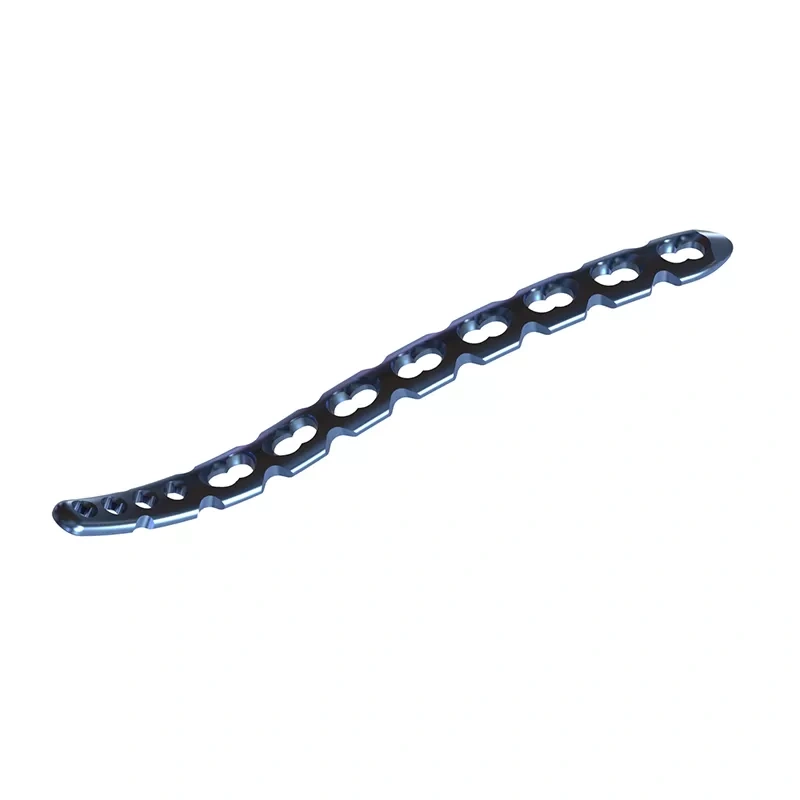

The Clavicle Locking Plate is designed for internal fixation of clavicle fractures. It combines anatomical contouring with multi-directional locking technology to provide stable fixation across a range of fracture patterns.
The plate features 30° conical multi-directional locking holes, allowing screws to be positioned with up to ±15° angular deviation. This variable-angle configuration enables surgeons to optimize screw trajectories according to patient anatomy and fracture characteristics while maintaining an angular-stable plate-screw construct.
The plate is pre-contoured to the anatomy of the clavicle and incorporates a low-profile, highly polished surface with rounded edges to help minimize soft-tissue irritation. The plate and compatible screws are manufactured from medical-grade titanium alloy or stainless steel, according to the specified product configuration.
The combination of anatomical contouring, multi-directional locking, and low-profile design provides a versatile fixation solution for simple and complex clavicle fractures.
The 30° conical locking-hole design permits screw angulation of up to ±15° in all directions, allowing flexible screw positioning while maintaining angular stability.
The locking screws feature threaded spherical heads designed to engage with the plate's polyaxial locking and compression holes, supporting secure fixation at the selected trajectory.
Sharp, self-tapping screw tips facilitate screw insertion and can simplify the implantation procedure by reducing the need for separate pre-tapping.
The anodized surface treatment provides color coding for component identification and contributes to the specified surface properties of the implant.
The plate is pre-contoured to match clavicular anatomy. Rounded edges and a polished surface are designed to reduce tissue disruption and soft-tissue irritation.
Compatible cortical screws can be inserted eccentrically when compression is required, providing additional flexibility during fracture fixation.
The interrupted thread configuration is designed to reduce the risk of cold welding at the screw-plate thread interface.
The ±15° variable-angle range provides flexibility in screw trajectory selection, which is useful when addressing complex or comminuted fracture patterns.
Direct locking between the screw head and plate creates a secure plate-screw interface and supports a stable fixation construct.
The locking screws engage directly with the plate, eliminating the need for an additional locking sleeve and helping streamline the surgical procedure.
A dual-screw configuration can provide additional resistance to rotational movement and support fixation of fracture segments.
The system is designed to accommodate both cortical and cancellous fixation applications, providing flexibility according to the fracture and bone characteristics.
The pre-contoured plate shape is designed to conform to the clavicular anatomy, supporting accurate positioning and reducing the need for extensive plate contouring.
The implants are manufactured using CNC machining and controlled production processes to achieve consistent dimensional accuracy and component quality.
The product is manufactured from specified medical-grade materials, including titanium alloy or stainless steel, offering the material properties required for orthopedic fixation applications.
Customization options are available to support different OEM and ODM requirements, including:
The supplier states that its manufacturing systems are aligned with the following requirements and standards:
The product is positioned for supply to a range of orthopedic and medical-device customers, including:
The design of the Anterior Clavicle Locking Plate supports the following surgical objectives:
The Anterior Clavicle Locking Plate is designed for internal fixation of clavicle fractures, including:
The supplier also states that the plate may be used for internal fixation of fractures involving the limbs and pelvis.
| Model Number | Specification (mm) | Compatible Screws |
|---|---|---|
| 4034001 | 7 Holes × 77 | 2.7 mm Variable Angle Locking Screw 3.5 mm Locking Screw 3.5 mm Cortical Screw |
| 9 Holes × 89 | ||
| 10 Holes × 101 | ||
| 11 Holes × 113 | ||
| 12 Holes × 124 |
