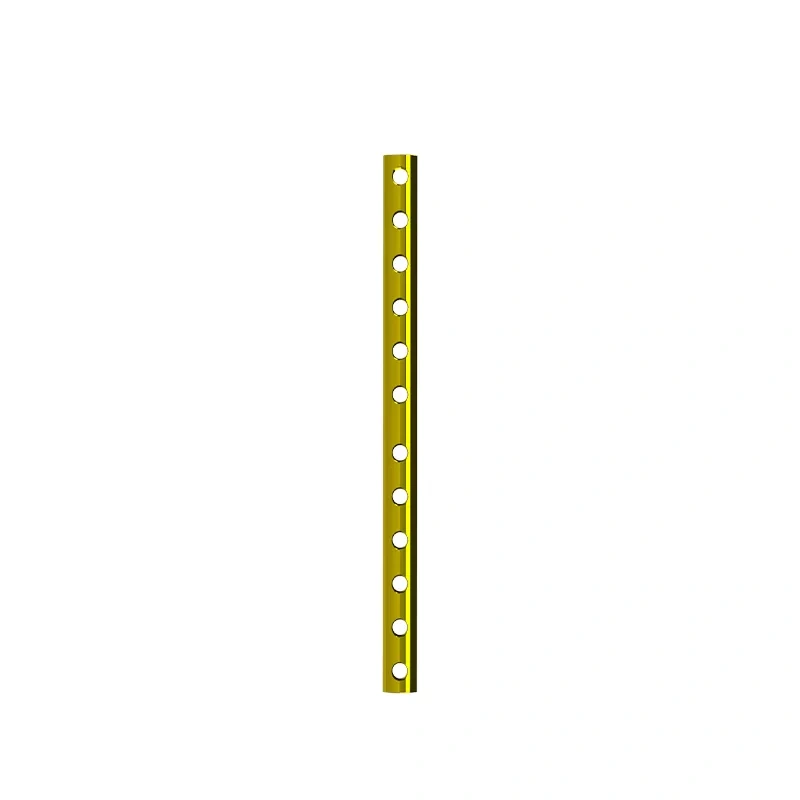

The Locking 1/3 Tubular Plate is designed for fixation of fractures involving the limbs, clavicle, and pelvis. Its locking mechanism provides angular stability through a fixed-angle screw-plate construct, while the low-profile design helps minimize soft tissue irritation. The anatomically contoured plate features rounded edges and a smooth surface for improved conformity to the bone.
• 20° Conical Threaded Locking Holes provide angular stability and secure screw-plate engagement.
• Self-Tapping Screws facilitate insertion without pre-drilling.
• Anodized Surface improves corrosion resistance and surface durability.
• Ball-Head Screws provide secure engagement with compatible locking holes.
• Anatomical Low-Profile Design with rounded edges and a smooth surface helps reduce soft tissue interference.
• Angular Stability: The locking screw mechanism provides a stable fixed-angle construct and helps maintain fracture fixation.
• Reduced Soft Tissue Irritation: The low-profile, smooth design helps minimize tissue interference.
• Versatile Application: The contoured plate can be used for fracture fixation in the limbs, clavicle, and pelvis.
• Anatomical Conformity: Rounded edges and a contoured profile facilitate adaptation to different bone surfaces.
• Biocompatible Construction: The anodized surface and titanium-based construction support implant biocompatibility.
● Fracture fixation in the limbs, clavicle, and pelvis.
● Ideal for fractures requiring stable internal fixation for optimal recovery.
| Model Number | Spec.(mm) | Compatible screws |
| 4032035 | 2 Holes×28 | 3.5 mm Locking Screws |
| 3 Holes×40 | ||
| 4 Holes×52 | ||
| 5 Holes×64 | ||
| 6 Holes×76 | ||
| 7 Holes×88 | ||
| 8 Holes×100 | ||
| 9 Holes×112 | ||
| 10 Holes×124 | ||
| 12 Holes×148 |
